HYUNDAI 210W Fitted with Dual-Head Ballast Tamper for 1520mm Gauge

Precision Track Maintenance: HYUNDAI 210W Fitted with Dual-Head Ballast Tamper for 1520mm Gauge
The Ultimate Track Maintenance Solution for CIS Railways

In the railway maintenance industry, the "window of opportunity" — commonly known as "Tian Chuang" — is extremely limited. Whether you are maintaining the Trans-Siberian Railway or a regional industrial line operating on the 1520mm gauge, speed and precision are paramount.

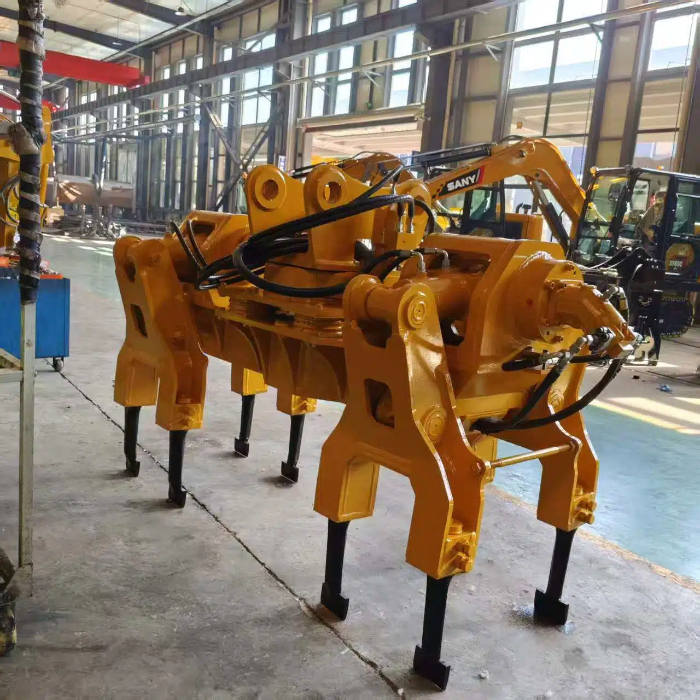

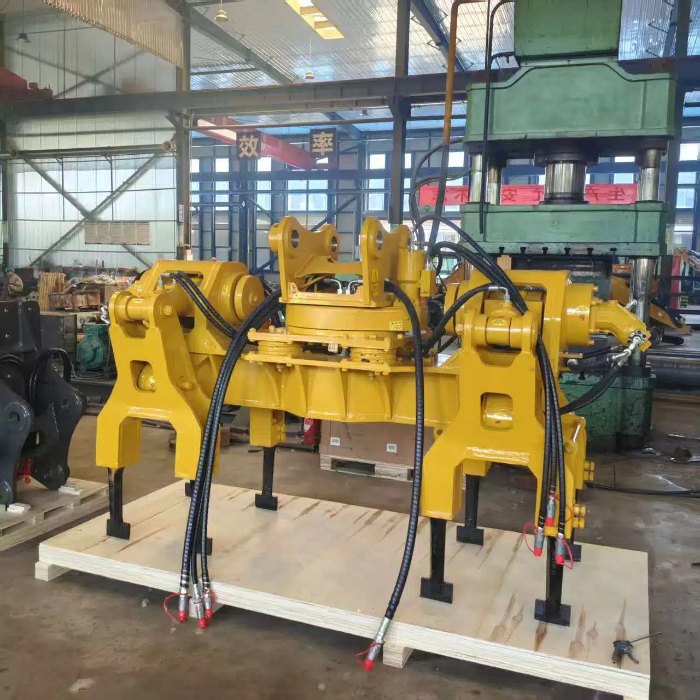

Gone are the days when heavy tamping required specialized multi-million dollar tamping machines or inefficient manual labor. Today, we introduce a game-changing hydraulic attachment: the Double-Head Ballast Tamper mounted on a HYUNDAI 210W Wheeled Excavator.

Here is why this combo is the most cost-effective and efficient solution for your rail yard this season.

1. Tailored for the 1520mm Gauge
The 1520mm gauge (common in Russia, Ukraine, Kazakhstan, and Finland) presents unique challenges regarding stability and clearance.

Unlike standard tampers designed for 1435mm gauge, our double-head tamper has been specifically modified for the wider track width. The tine spread and clamping range have been optimized to work perfectly between the broader sleepers, ensuring that the compaction force is applied exactly where it is needed—under the rail base.

Our factory in Jining, China has successfully debugged the hydraulic flow matching for the Hyundai 210W, a popular 21-ton class wheeled excavator known for its powerful auxiliary hydraulics.

2. Why Choose a Double-Head Hydraulic Tamper?
You might ask, "Why not just use a single-head vibrator?" For heavy rail corridors, the Dual-Head Tamper is superior.

Based on field data, dual-head tampers improve efficiency by approximately 30% compared to single-head or manual units . Our system utilizes high-frequency vibration combined with powerful squeeze force (up to 10 Tons) .

Here is how it works on the Hyundai 210W:

High-Frequency Vibration: The hydraulically driven vibrator group creates a "fluidization" effect on the ballast. This allows the stones to flow and reorient into a denser matrix .

Squeeze & Clamp: Twin cylinders apply direct force to the tine holder, squeezing the ballast under the tie to eliminate "voids" (empty pockets under the rail).

One-Man Operation: The operator stays in the cab. Using the excavator's joysticks and an auxiliary pedal (or proportional roller), the operator can insert, vibrate, and close the arms without any signal person on the ground.

3. The "Open-Space" Advantage & Synchronized Operation
Traditional tamping machines often struggle with turnouts, crossings, and switch areas (the most complex parts of the track). Because the excavator arm has multiple degrees of freedom (boom, arm, and tilt), the Hyundai 210W with a double-head tamper can reach spots that rigid tamping machines simply cannot access .

Flexibility: The attachment can tilt +/- 90 degrees to align with the track angle.

Visibility: The 360-degree rotation of the attachment allows the operator to view the work from any angle, crucial for precise switch maintenance.

4. Site Commissioning: The Hyundai 210W + 1520mm Tamper
Last week, our engineering team completed the final Factory Acceptance Test (FAT) for a client in Kazakhstan.

The Setup:

Host Machine: Hyundai 210W (Wheeled Excavator)

Attachment: DG Series Dual-Head Tamper

Rail Gauge: 1520mm

Hydraulic Settings: Calibrated to 20 Mpa working pressure, consuming ~110-120 L/min flow .

The Result:
We conducted a live test on a simulation track using old sleepers and fresh ballast. The machine achieved full insertion depth of the tines (up to 520mm clamp range) and produced a compacted ballast shoulder that met FRA (Federal Railroad Administration) equivalent standards.

The customer witnessed the "Rise and Tamp" cycle—performed precisely 8 times per minute—requiring only the excavator's hydraulic power.

Why Source This Combo From Us?
We are not just a trading company; we are a manufacturing and modification base in Shandong Province, China.

Plug-and-Play Hydraulics: We provide the complete valve kit and hoses custom-fitted for the Hyundai 210W. No "custom welding" needed at your site.

1520mm Certification: Our undercarriage and attachment components are stress-tested for the specific dynamics of broad-gauge railways.

Immediate Support: We offer video support for initial setup, or we can arrange a technician for on-site commissioning.

Get a Quote for Your Rail Fleet
If you have a Hyundai 210W (or any 18-25 ton wheeled excavator) and you need to upgrade your track maintenance division, we have the solution.

Provide us with the following for a quick quote:

Machine Brand & Model (e.g., Hyundai 210W-9)

Rail Gauge (1520mm confirmed)

Sleeper Type (Concrete or Wood)

Contact me on WhatsApp for a live video of the tamper in action.
