Maximize Railway Maintenance Efficiency with Customized 8T & 16T Wheeled Rail Excavators
In the demanding world of railway infrastructure maintenance, versatility and precision are non-negotiable. Whether it’s tamping, track lifting, or ballast regulating, the machinery used must adapt to the strict safety protocols and spatial constraints of the rail network.

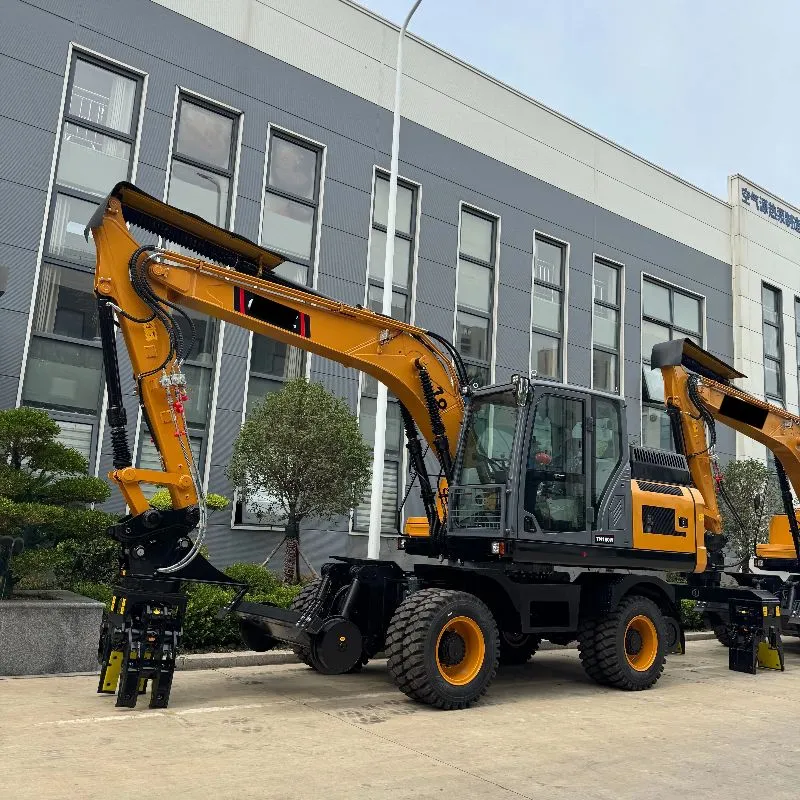

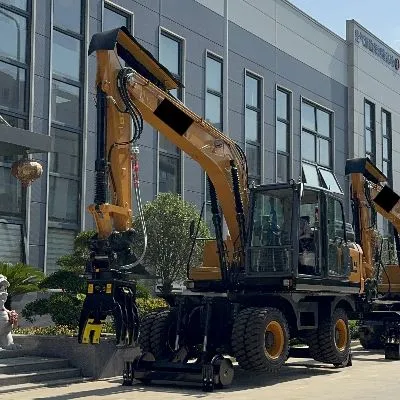

At STND Machinery, we have just completed the commissioning of our latest solutions for the rail sector: the TN85W (8-ton) and TN160W (16-ton) Wheeled Rail Excavators . These machines represent a leap forward from standard excavators, offering purpose-built road-rail conversion technology designed for the rigorous demands of modern track maintenance.
Why Choose a Dedicated Rail-Excavator Conversion?
Unlike traditional excavators, rail-converted machines are engineered to travel on both rubber tires (road) and steel rails (track). As highlighted by industry experts, the evolution of track tamping and maintenance has shifted from manual labor to high-frequency mechanical intervention -4. A converted rail excavator allows a single unit to handle multiple attachments (like single-head tampers or grapples) without the need for expensive, single-purpose heavy machinery.
Technical Highlights of the STND Rail Excavators
We currently offer two prime configurations to suit different project scales and track gauges (Standard 1435mm):
1. TN85W – The Agile 8-Ton Railway Machine
The TN85W is engineered for urban rail projects and tight maintenance windows where space is at a premium. Despite its compact 7,400kg operating weight, it packs a punch.
Powerhouse: Powered by a fuel-efficient Yuchai YC4FA65-T300 engine (48kW), meeting Tier 3/Stage IIIA emission standards.
High Mobility: Achieves a road travel speed of 40km/h and rail speeds of 5-12km/h, allowing rapid repositioning between job sites.
Operational Prowess: Features a 360° rotating upper structure with a swing speed of 11-12 r/min.

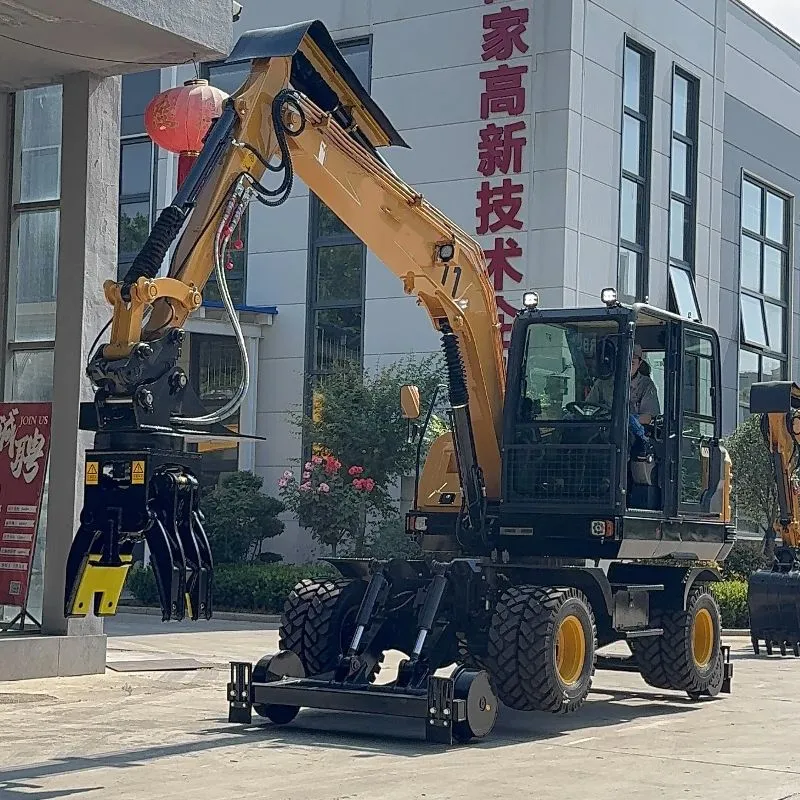

Rail-Specific Design: Equipped with a 630mm sleeper clamp opening and a 2,800mm scrap width, making it ideal for ballast profiling and sleeper replacement on metro and light rail lines.
2. TN160W – The Heavy-Duty 16-Ton Rail Converter
For mainline railway construction and heavy ballast regulation, the TN160W offers superior stability and lifting power.
Enhanced Power: Driven by a robust Cummins QSB3.9-C125 engine (93kW), providing the hydraulic flow necessary for heavy tamping and excavation.
Optimized Undercarriage: Features a longer wheelbase (2,615mm) and wider track gauge (1,900mm) for enhanced stability when handling heavy switch materials.
Gradient Master: Capable of operating on gradients up to 60% , suitable for challenging track formations.
Durability: With a 14,000kg operating weight and heavy-duty plunger motors, it is built for the continuous action required in high-output track renewal projects -1.
STND vs. Standard Conversions
Many rail conversions are aftermarket add-ons, but STND’s approach integrates the rail drive system directly into the machine’s hydraulic architecture. Both the TN85W and TN160W utilize plunger-type motors specifically for rail engagement, ensuring that the braking and traction control meet the strict safety standards required for work zones adjacent to live overhead lines (OLE).
Conclusion
Whether you require the agility of an 8-ton railway excavator for station refurbishment or the power of a 16-ton road-rail converter for main line ballast regulation, STND Machinery has the solution.
Contact us today to learn more about our rail-ready fleet or to schedule a commissioning demo.
