The Ultimate Guide to Single-Head Tamping: Enhancing PC160 Excavator for Rail Maintenance

Proper track geometry is the backbone of railway safety. Over time, ballast degrades and settles, leading to track irregularities. Correcting this requires a machine capable of high-frequency vibration to fluidize and re-compact the ballast beneath the sleepers .

While large-scale tamping units like the Plasser & Theurer or Matisa B 35 are industry standards, they are significant investments . For contractors needing flexibility or working on isolated track sections (spurs, industrial rail, or tram lines), the Single-Head Tamping Machine attachment offers a smarter solution.

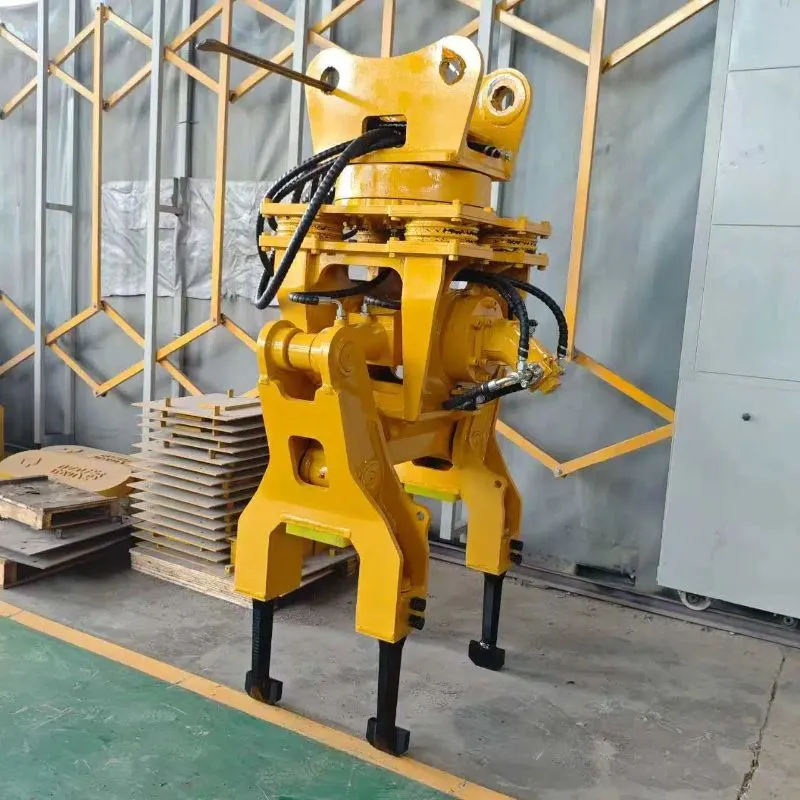

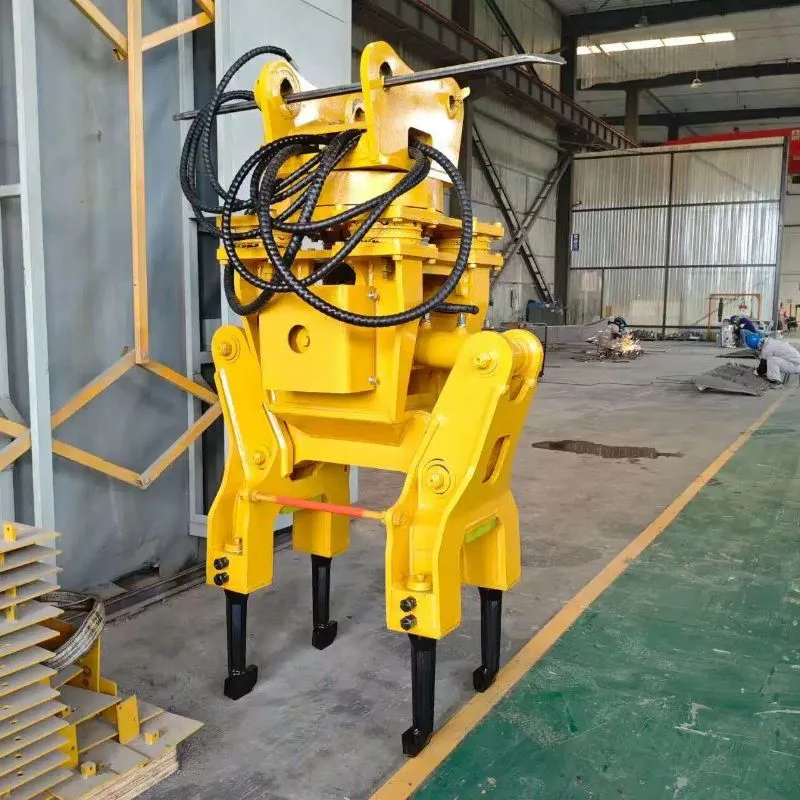

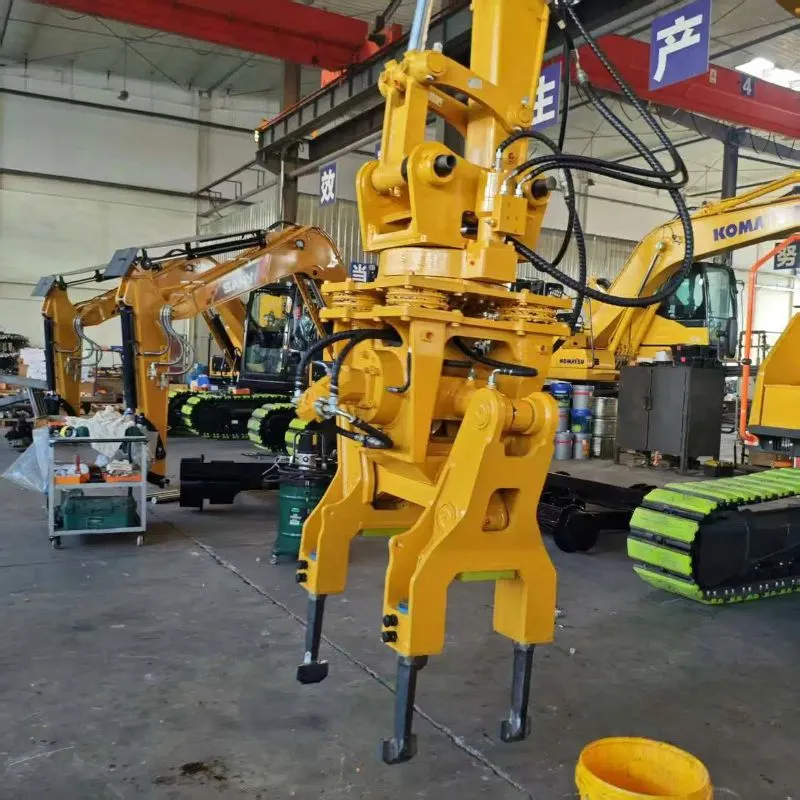

STND Machinery is proud to announce the factory commissioning of our latest Single-Head Tamping Devices, specifically calibrated for the PC160 class excavators (7-18 ton range).

What is a Single-Head Tamping Attachment?

Designed as a hydraulic attachment for host excavators (like our TN160W rail converter), this tool replaces the bucket to perform high-speed ballast compaction. It combines clamping force with high-frequency vibration (30-40Hz) to lift and pack stones tightly under the sleeper ends .

Product Spotlight: TNTZDGJ Series

Our new tamping line offers two models tailored to different excavator host weights:

Model: TNTZDGJ75

• Applicable Host: 7-10 Ton Excavators (e.g., TN85W).

• Vibration Frequency: 30 Hz.

• Motor Speed: 5,600 r/min.

Model: TNTZDGJ150

• Applicable Host: 13-18 Ton Excavators (e.g., TN160W).

• Vibration Frequency: 40 Hz (Higher frequency for harder ballast).

• Motor Speed: 5,000 r/min.

Key Technical Advantages

1. Universal Rail Compatibility
Both models support global track gauges including 1000mm, 1435mm (Standard), and 1520mm (Russian Gauge) . The 380mm-625mm clamping range ensures compatibility with concrete or wooden sleepers.

2. Deep Tamping Depth
Achieving a maximum tamping depth of 400mm, the vibrating tines (4 pcs per unit) penetrate deep below the sleeper, ensuring the correction of surface geometry faults as well as deep-seated ballast settlement .

3. High-Frequency Elliptical Vibration
The hydraulic motors operate at a rated pressure of 400 bar. This high-pressure system generates the necessary centrifugal force to achieve "relative density" in the ballast, preventing rapid track degradation after the train passes .

4. 360° Operational Flexibility
Unlike traditional rail-bound tampers that require complex movement, this attachment allows the excavator to rotate a full 360 degrees. This is critical for working around switches (turnouts) and crossings where track geometry is complex.

Seamless Integration with STND Rail Excavators

When mounted on the STND TN160W wheeled rail excavator, this tamping head transforms the machine into a compact tamping unit. The operator uses the excavator’s existing hydraulic system (augmented by our tuning) to control the tamping process, utilizing the excavator's wheels to move precisely from sleeper to sleeper.

Conclusion

The era of relying solely on massive, million-dollar tamping fleets for small-scale repairs is changing. The STND Single-Head Tamping Attachment offers rail contractors a cost-effective, highly mobile alternative.

Looking to maximize the utility of your PC160 or TN160W? Contact STND Machinery for a video of the tamping action and a quote.
