The Efficient Hydraulic Attachment for Railway Maintenance

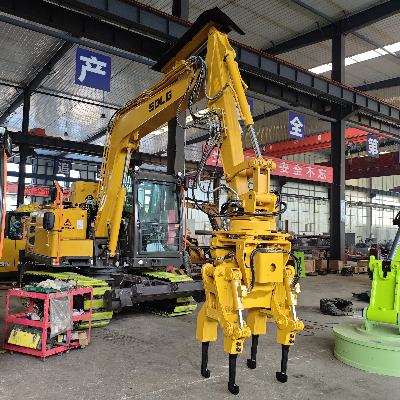

Maintaining railway turnouts and switches requires specialized equipment that can handle complex track geometry while delivering consistent compaction results. The Turnout Ballast Tamper, a hydraulic attachment for excavators, has emerged as the practical solution for ballast consolidation after sleeper replacement and routine track maintenance.

What Makes Turnout Ballast Tamper Essential for Railway Work

Railway maintenance crews face unique challenges when working on turnouts—the critical junctions where trains switch between tracks. Traditional large-scale tamping machines are costly and may not access confined areas effectively. The excavator-mounted Turnout Ballast Tamper solves this problem by offering:

Versatility: Quick attachment changeover allows the same excavator to perform multiple tasks from sleeper replacement to ballast tamping .

Precision: High-frequency vibration systems deliver consistent compaction force to stabilize ballast under rails and sleepers

Accessibility: Compact design enables working in tight spaces around switches and crossings where larger equipment cannot operate.

Technical Features That Drive Performance

Dual-Model Options for Different Excavator Classes

The Turnout Ballast Tamper is available in two configurations to match your excavator's tonnage:

Both models accommodate track gauges of 1000mm, 1435mm, and 1520mm, making them suitable for international railway standards. The 400mm maximum tamping depth ensures thorough ballast consolidation beneath sleepers .

360° Rotation and Obstacle Avoidance

The 360° rotation capability allows operators to position tamping tines precisely without repositioning the excavator . The 85° outrigger tilting angle and 470mm tilting height enable single-side lifting—a critical feature for working around turnout frogs and guard rails where clearance is limited .

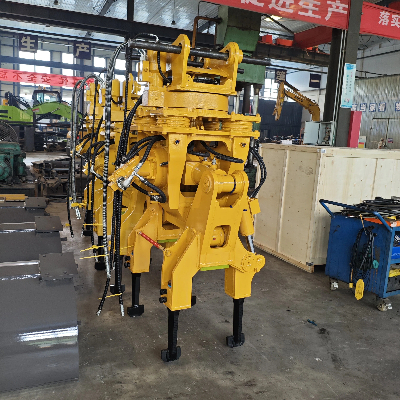

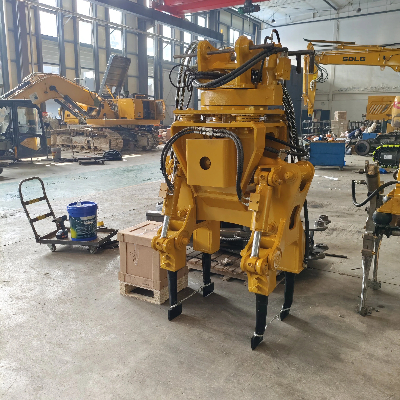

Four Tamping Tines for Efficient Compaction

Each unit features four tamping tines that squeeze and vibrate simultaneously, delivering up to 10 tons of compaction force . The clamping range of 375-625mm accommodates various sleeper widths, from timber to concrete types.

Cost-Effective Alternative to Dedicated Tamping Machines

Dedicated railway tamping machines can cost millions and require specialized operators. The Turnout Ballast Tamper offers a cost-effective alternative:

Lower capital investment while delivering professional-grade tamping results

Reduced labor requirements: "One machine, one operator" principle for efficient workflow

Eliminates manual tamping in turnout areas that require precise compaction

Why Choose Tiannuo Turnout Ballast Tamper

Shandong Tiannuo Construction Machinery Co., Ltd. manufactures these attachments to rigorous quality standards. The TNDCDGJ series features:

High-performance hydraulic motors with 400 bar rated pressure

Durable construction for demanding railway environments

Simple maintenance with easily replaceable wear parts

Factory-direct support from Jining City, Shandong Province

Common Applications

Sleeper replacement projects: Compacting ballast after new sleeper installation

Turnout and switch maintenance: Working around complex track geometry

Branch line and yard maintenance: Efficient spot tamping for smaller operations

Ballast bed rehabilitation: Restoring proper drainage and track stability

Partner with a Reliable Manufacturer

Shandong Tiannuo Construction Machinery Co., Ltd. is located at No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province. Visit www.stnd-machinery.com or contact arm@stnd-machinery.com for more information about the TNDCDGJ series Turnout Ballast Tamper.

Upgrade your railway maintenance fleet with the Turnout Ballast Tamper—the cost-effective, high-performance hydraulic attachment that delivers professional-grade tamping results for turnouts and mainline tracks.
