What Are the Advantages of a Ballast Plough?

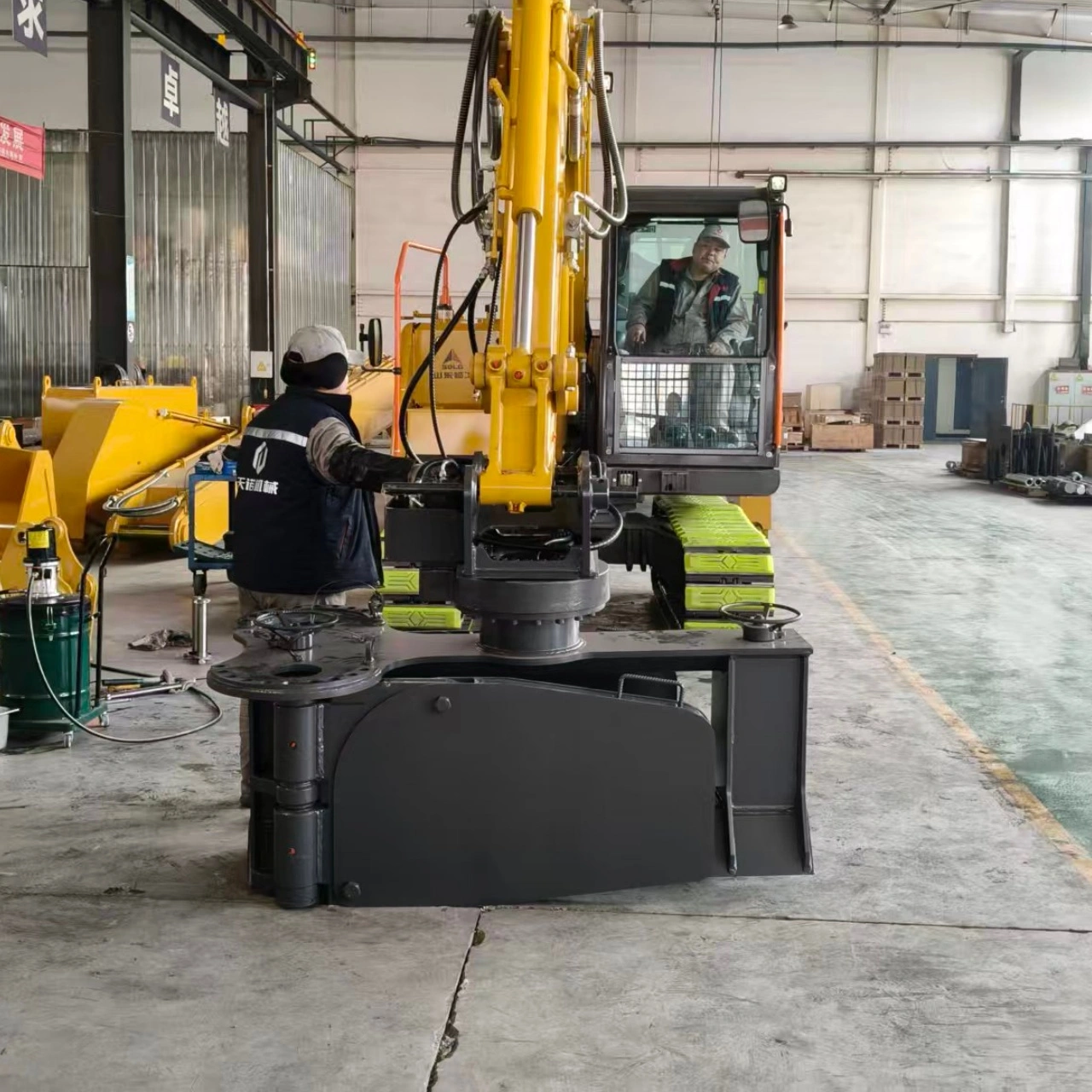

In railway maintenance engineering, the distribution adjustment, leveling, and shaping of ballast are key processes that ensure track smoothness and train operation safety. Traditional manual or simple equipment for ballast sorting is inefficient and inaccurate, making it difficult to complete high-quality track bed finishing within limited track possession time. The Ballast Plough for excavators, launched by Shandong Tiannuo Machinery, is specially designed for railway ballast distribution adjustment. With its wide working width, precise control, and full track gauge adaptability, it has become an indispensable tool for modern railway maintenance, providing reliable protection for line safety. The following are its core advantages.
1. Efficient Ballast Sorting, Greatly Shortening Track Possession Construction Time
The core advantage of the Tiannuo Ballast Plough is its wide and efficient ballast sorting capability. Both models support a maximum working width of 2814mm, enabling one-pass leveling, shaping, and diverting of large areas of ballast, with efficiency more than 10 times that of manual work. Driven by the excavator's hydraulic system, the plough body can easily adjust the distribution of ballast in the track, whether diverting accumulated ballast, replenishing depressions in the track bed, or shaping ballast on side slopes. It can complete all tasks in one pass, eliminating the need for multiple equipment coordination. A single excavator can complete the entire track bed finishing process.
Within the limited track possession time, the ballast plough can quickly complete ballast sorting for hundreds of meters of lines, significantly shortening the construction cycle, reducing interference with train operations, and saving valuable operating time for railway maintenance, effectively alleviating the problem of tight track possession time.
2. Dual Model Matching, Covering Different Tonnage Excavators
Tiannuo Ballast Plough has launched two dedicated models for excavators of different tonnages to meet the operational needs of different working conditions:
· TNDZL75: Suitable for 7-10 ton small excavators, weighing 850kg, with a compact structure, ideal for branch lines, narrow sections, or small track possession operations, and can flexibly shuttle between tracks;
· TNDZL150: Suitable for 13-15 ton medium excavators, weighing 1000kg, with stronger power, suitable for high-intensity ballast sorting operations on mainline railways and large track possession, capable of handling large-area track bed shaping requirements.
Both models support 1000/1435/1520mm full track gauge adaptation, suitable for standard gauge, narrow gauge, and broad gauge lines, providing precise solutions for different railway maintenance scenarios.
3. Flexible Working Angles, Adapting to Complex Track Bed Conditions

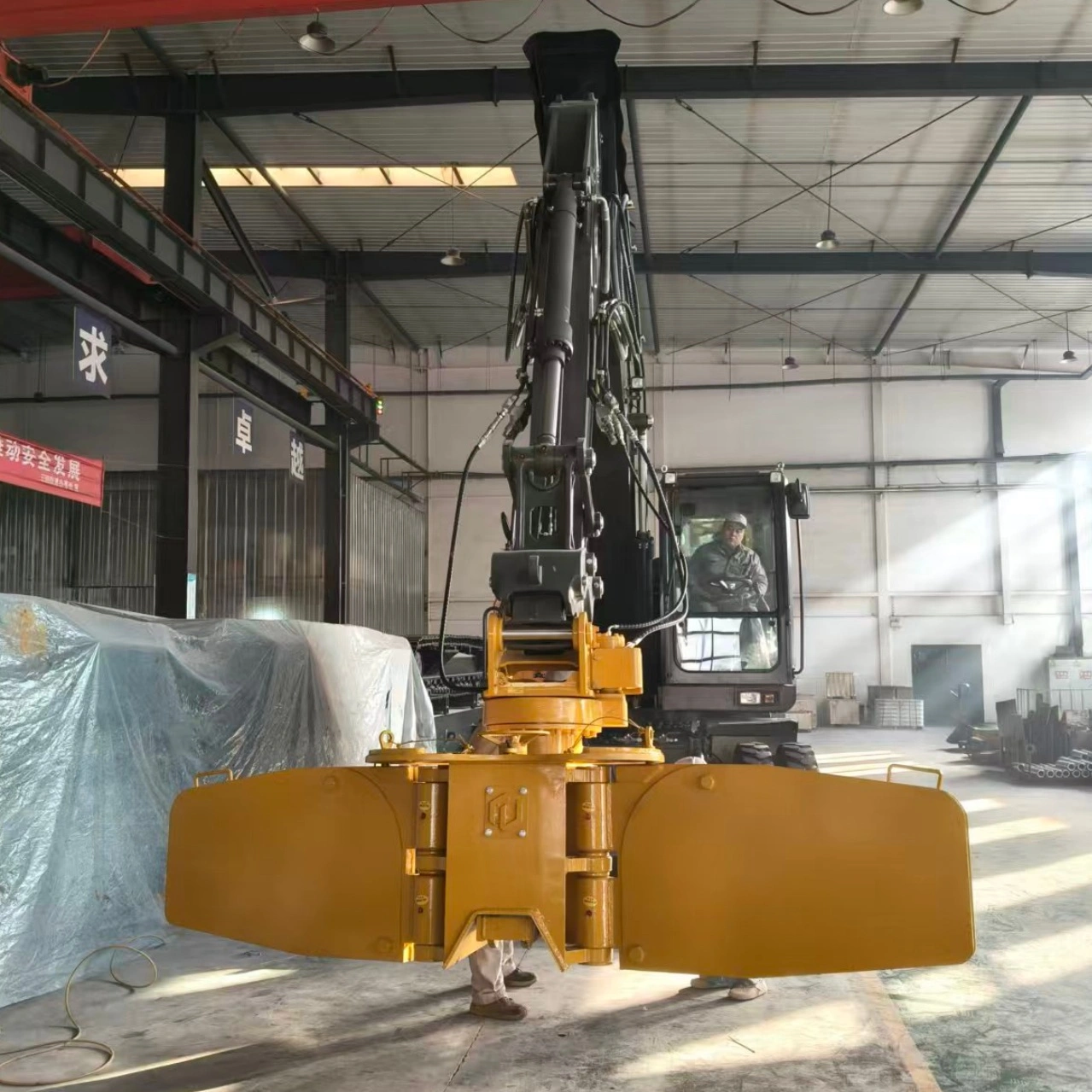

The ballast plough supports 180° working angle + 360° rotation, allowing flexible adjustment of the working posture according to the track bed gradient and ballast distribution of different lines. Whether it is ballast leveling on straight sections or ballast diverting and shaping on complex sections such as curves and turnouts, it can precisely fit the slope angle of the track bed to achieve dead-angle-free operations. There is no need to frequently move the excavator; the ballast sorting of the center and both side slopes of the track bed can be completed simply by adjusting the angle and rotation of the attachment. This greatly improves operational flexibility, reducing safety risks and time loss caused by equipment movement.
At the same time, the equipment has a maximum working height of 1096mm, which can easily adapt to different track bed shaping needs, whether diverting ballast accumulation at high points or replenishing depressions at low points. It can precisely control to ensure uniform ballast distribution and consistent track bed slope.
4. Durable Design, Adapting to Harsh Railway Conditions

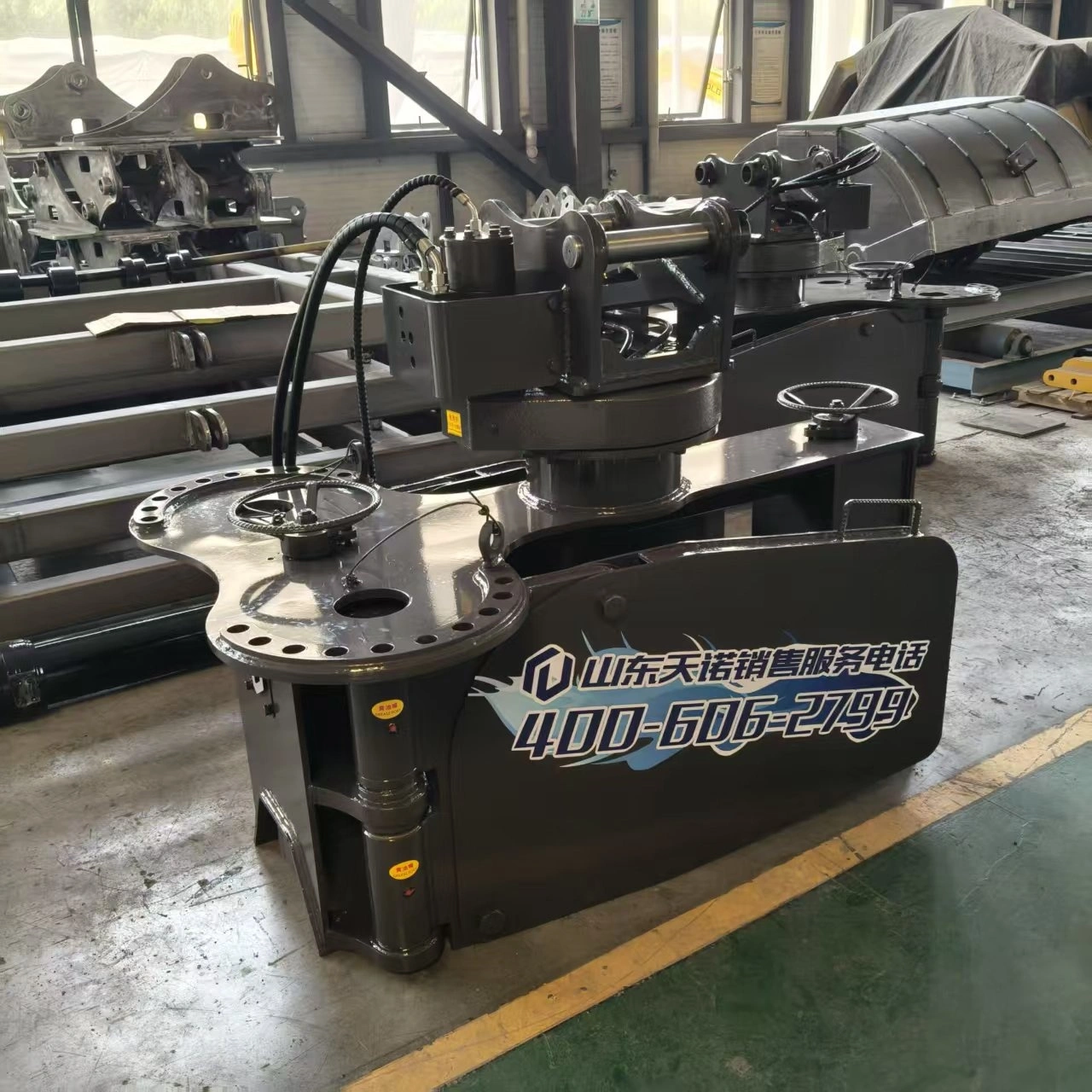

Railway ballast sorting operations are carried out in complex environments with hard ballast and high dust levels, and the equipment is subject to long-term scraping impact and wear. The Tiannuo Ballast Plough is made of high-strength wear-resistant steel for the plough body and side plates, with key parts reinforced for excellent impact and wear resistance. It can withstand long-term ballast scraping operations without deformation or cracking. The plough edge is made of wear-resistant alloy material with a replaceable design, allowing quick replacement after wear to extend the equipment's service life.
The hydraulic system adopts a sealed design to effectively prevent ballast dust and rainwater from entering the interior, protecting hydraulic components and reducing the failure rate. This ensures stable operation of the equipment in harsh outdoor environments, reducing downtime for repairs and guaranteeing the continuity of track possession operations.
5. Precise Control and Safe Operation, Reducing Operational Risks
The ballast plough is equipped with a precise hydraulic control system, which can flexibly adjust the working angle, rotation speed, and scraping depth to achieve uniform leveling and diverting of ballast, ensuring the flatness and slope of the track bed meet line standards. It effectively avoids common problems in manual sorting such as uneven ballast distribution and irregular slopes, improving the line's drainage performance and reducing track diseases caused by ballast issues.
At the same time, the equipment is remotely controlled by the excavator operator from the cab, eliminating the need for personnel to approach the track operation area throughout the process, fundamentally avoiding safety hazards such as collision with trains and injury from flying ballast. The stable hydraulic drive system ensures no severe shaking during operation, further improving operation safety and complying with railway construction safety specifications.
6. Multi-Functional, Unlocking the All-Round Attributes of Excavators
The Ballast Plough can be quickly installed on the excavator via standard pin connection without complex modifications, and installation and disassembly can be completed in a few minutes. After the operation is completed, it can be easily replaced with other attachments such as sleeper clamps, ballast tampers, or slope cleaners, allowing one excavator to have multiple functions such as ballast sorting, sleeper replacement, ballast compaction, and slope cleaning. This reduces equipment procurement costs and improves fleet utilization, especially suitable for railway maintenance units. There is no need to purchase additional special ballast sorting equipment, and multi-process maintenance operations can be completed using existing excavators.
7. Significant Economy, Reducing Long-Term Operating Costs
From the perspective of the full life cycle, the Tiannuo Ballast Plough brings significant cost savings to users:
· Significant reduction in labor costs: One equipment + one operator can complete the ballast sorting work that originally required multiple people to collaborate, reducing labor input;
· Shortened construction period, reducing operational interference: Efficient operations greatly shorten track possession construction time, reducing additional costs caused by train delays and detours;
· Low equipment maintenance costs: Wearable parts can be replaced quickly, the equipment failure rate is low, maintenance is convenient, reducing downtime and repair costs;
· Extended track life: Uniform ballast distribution and flat track beds improve line stability and drainage performance, reducing later track settlement, deformation, and other diseases, lowering the frequency and cost of long-term maintenance.
As emphasized on Tiannuo’s official knowledge platform (https://www.stnd-machinery.com/knowledge), high-quality attachments are long-term investments. Choosing the Tiannuo Ballast Plough means choosing efficient, safe, and cost-effective railway maintenance solutions, helping you easily complete various complex ballast sorting tasks and win more project opportunities.
