What Are the Advantages of a Ballast Tamper?

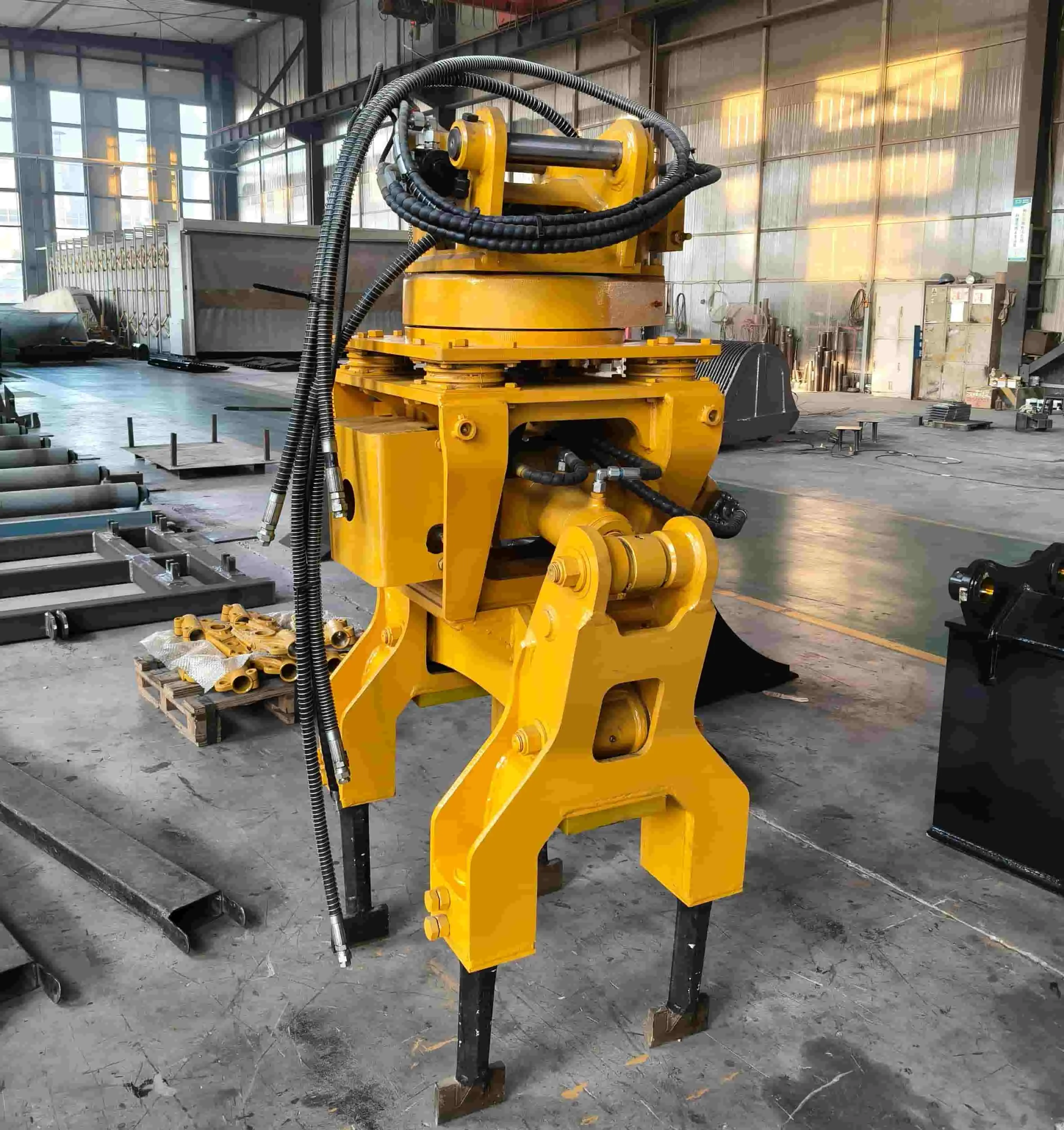

In railway maintenance engineering, the compaction of ballast after sleeper replacement is a key link that determines track stability and train operation safety. Traditional manual tamping is inefficient, labor-intensive, and constrained by limited track possession time, making it difficult to guarantee both construction quality and progress. The hydraulic ballast tamper for excavators, launched by Tiannuo Machinery, is specially designed for railway ballast compaction. With its high-frequency vibration, precise positioning, and multi-scenario adaptability, it has become a core attachment for modern railway maintenance operations, providing reliable protection for track safety. The following are its core advantages:

1. High-Frequency and Efficient Compaction, Greatly Improving Operation Efficiency

The ballast tamper adopts high-frequency vibration technology, with the two models providing vibration frequencies of 30Hz and 40Hz respectively. Combined with 4 tamping heads working simultaneously, it can quickly penetrate the ballast layer to achieve uniform and dense compaction. Compared with manual tamping, its efficiency is several times higher. Within the limited track possession time, it can complete ballast compaction for more sleepers, significantly shortening the construction cycle and reducing the impact on train operation. The high-frequency vibration effectively eliminates voids in the ballast, improves the density of the track bed, and fundamentally reduces the risk of later track settlement and deformation, ensuring smooth train operation.

2. Full Track Gauge Adaptation, Multi-Model Coverage for All Working Conditions

Tiannuo ballast tamper supports three mainstream track gauges: 1000mm, 1435mm, and 1520mm, suitable for most railway lines, whether standard gauge, narrow gauge, or broad gauge lines. At the same time, two models are launched for excavators of different tonnages:

· TNTZDGJ75: Suitable for 7-10 ton small excavators, weighing only 900kg, with a compact structure, ideal for branch lines, narrow sections, or small track possession operations;

· TNTZDGJ150: Suitable for 13-18 ton medium excavators, weighing 1100kg, with stronger power, suitable for high-intensity compaction operations on main lines and large track possession.

Both models support 360° rotation, allowing flexible adjustment of the working angle, enabling precise positioning on complex sections such as curved tracks and turnouts, achieving dead-angle-free compaction, and perfectly matching the working requirements of different lines and conditions.

3. Precise Control, Ensuring the Quality of Railway Operations

The ballast tamper is equipped with a precise hydraulic control system, which can flexibly adjust the vibration frequency, clamping force, and working depth, with a maximum tamping depth of 400mm, ensuring the ballast compaction depth meets the standard. The clamping range is 380-625mm, which can adapt to different specifications of sleepers, ensuring the tamping heads are accurately aligned with the ballast on both sides of the sleepers, avoiding partial or missed tamping. The 360° rotation function allows the equipment to complete all-round compaction of the ballast on both sides and front and rear of the sleepers without frequent movement of the excavator, with operation accuracy far exceeding manual work, effectively avoiding track irregularities caused by uneven compaction, and improving line quality.

4. Durable and Adaptable to Harsh Railway Conditions

Railway maintenance operations are carried out in complex environments, and the equipment needs to withstand long-term high-frequency vibration, dust erosion, and heavy impact. Tiannuo ballast tamper is made of high-strength wear-resistant steel for the body, with key components reinforced, excellent impact and fatigue resistance, and can withstand long-term high-frequency vibration without deformation or cracking. The sealed hydraulic system design effectively prevents ballast dust and rainwater from entering the interior, protecting hydraulic components and reducing the failure rate. The tamping heads are made of wear-resistant alloy material with a replaceable design, which can quickly restore performance after wear, greatly extending the service life of the equipment and reducing later maintenance costs.

5. Safe and Controllable, Reducing the Risk of Manual Operations

Traditional manual tamping requires operators to work at close range, with risks such as injury from flying ballast or equipment misoperation. The Tiannuo ballast tamper is remotely controlled by the excavator operator in the cab, eliminating the need for personnel to approach the operation area throughout the process, fundamentally avoiding safety hazards. The equipment is equipped with an overload protection device, which automatically stops for protection when the load is too large to prevent equipment damage; at the same time, the stable hydraulic drive system ensures the operation process is stable and controllable without severe shaking, further improving operation safety and complying with railway construction safety specifications.

6. Multi-Functional, Unlocking the All-Round Attributes of Excavators

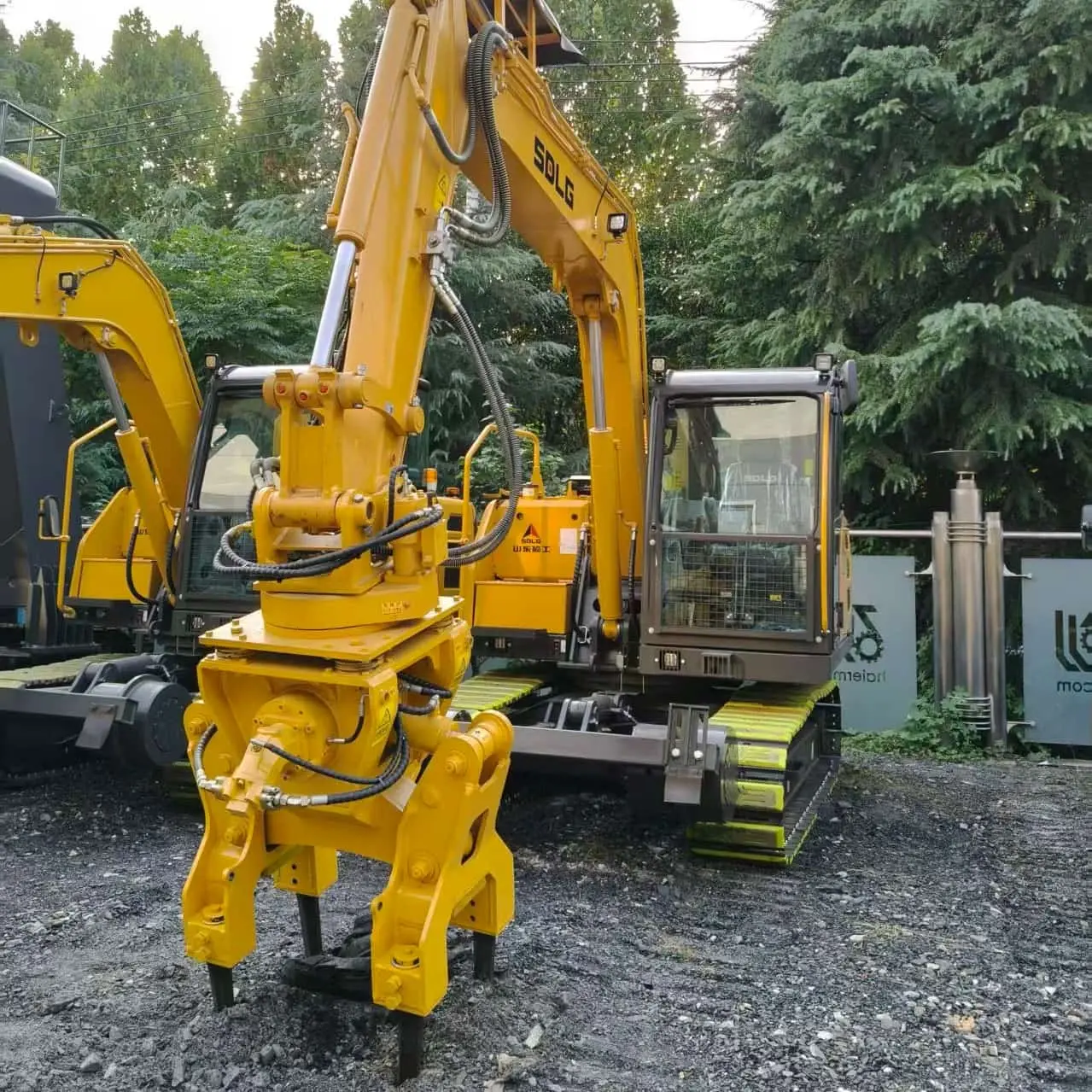

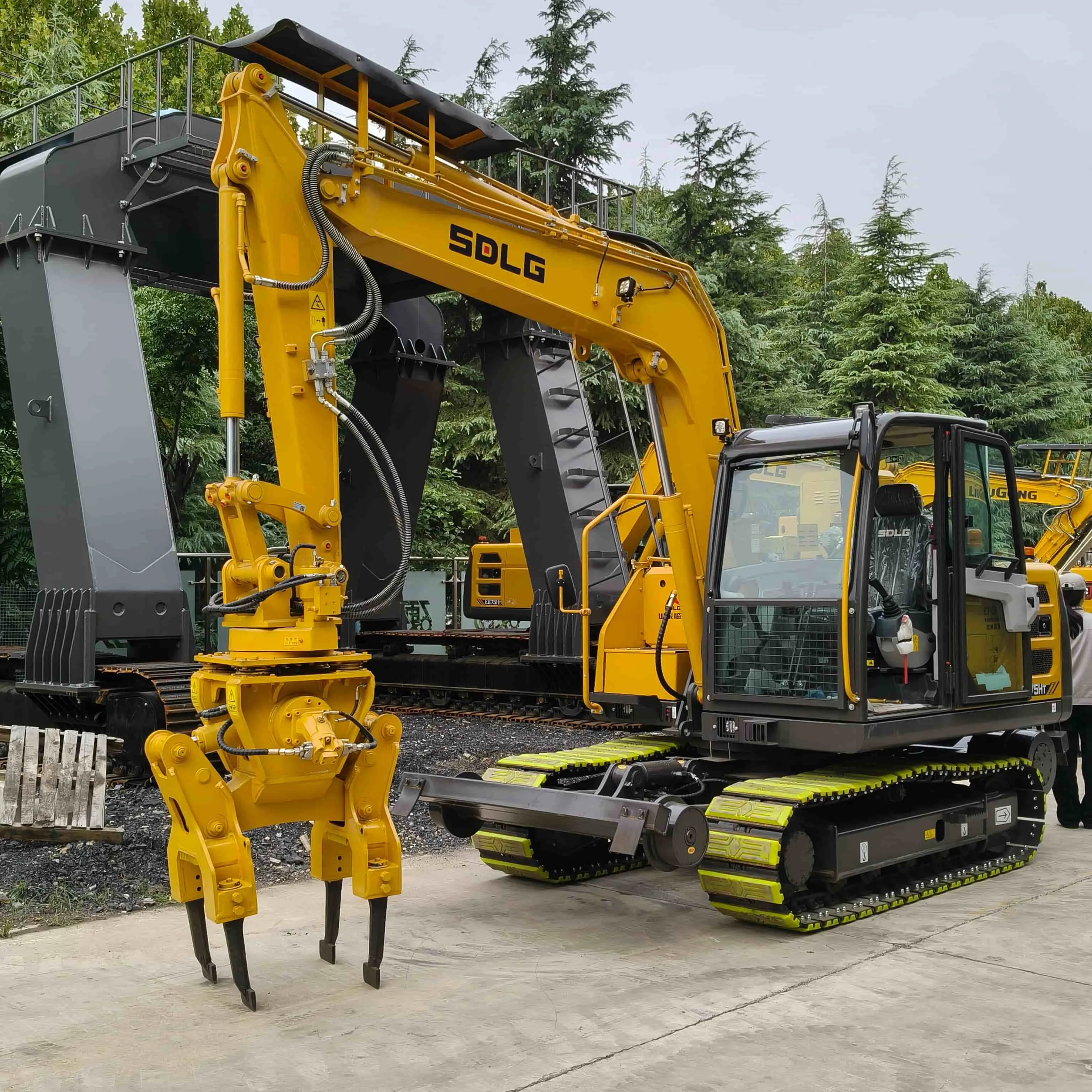

The ballast tamper can be quickly installed on the excavator via standard pin connection, without complex modification, and installation can be completed in a few minutes, enabling quick equipment transfer between different sites. After the operation is completed, it can be easily disassembled and replaced with other attachments such as hydraulic breakers or grabs, allowing one excavator to have multiple functions such as tamping, crushing, and loading/unloading, reducing equipment procurement costs and improving fleet utilization. It is especially suitable for railway maintenance units, which do not need to purchase additional special tamping equipment, and can complete ballast compaction operations using existing excavators, greatly reducing operating costs.

7. Significant Economy, Reducing Long-Term Operating Costs

From the perspective of the full life cycle, the investment in Tiannuo ballast tamper can bring significant cost savings:

· Significant reduction in labor costs: One equipment + one operator can complete the tamping work that originally required multiple people to collaborate, reducing labor input;

· Low maintenance costs: Wearable parts can be replaced quickly, the equipment failure rate is low, maintenance is convenient, reducing downtime for repairs;

· Shortened construction period: Efficient operation shortens the track possession construction time, reducing interference with train operation and avoiding additional costs caused by construction delays;

· Extended track life: Uniform and dense ballast compaction can reduce the frequency of later track maintenance and reduce long-term maintenance costs.

As emphasized on Tiannuo’s official knowledge platform (https://www.stnd-machinery.com/knowledge), high-quality attachments are long-term investments. Choosing Tiannuo ballast tamper means choosing efficient, safe, and cost-effective railway maintenance solutions, helping you easily complete various complex compaction tasks and win more project opportunities.
