What Are the Advantages of Double Hydraulic Ballast Tamper?

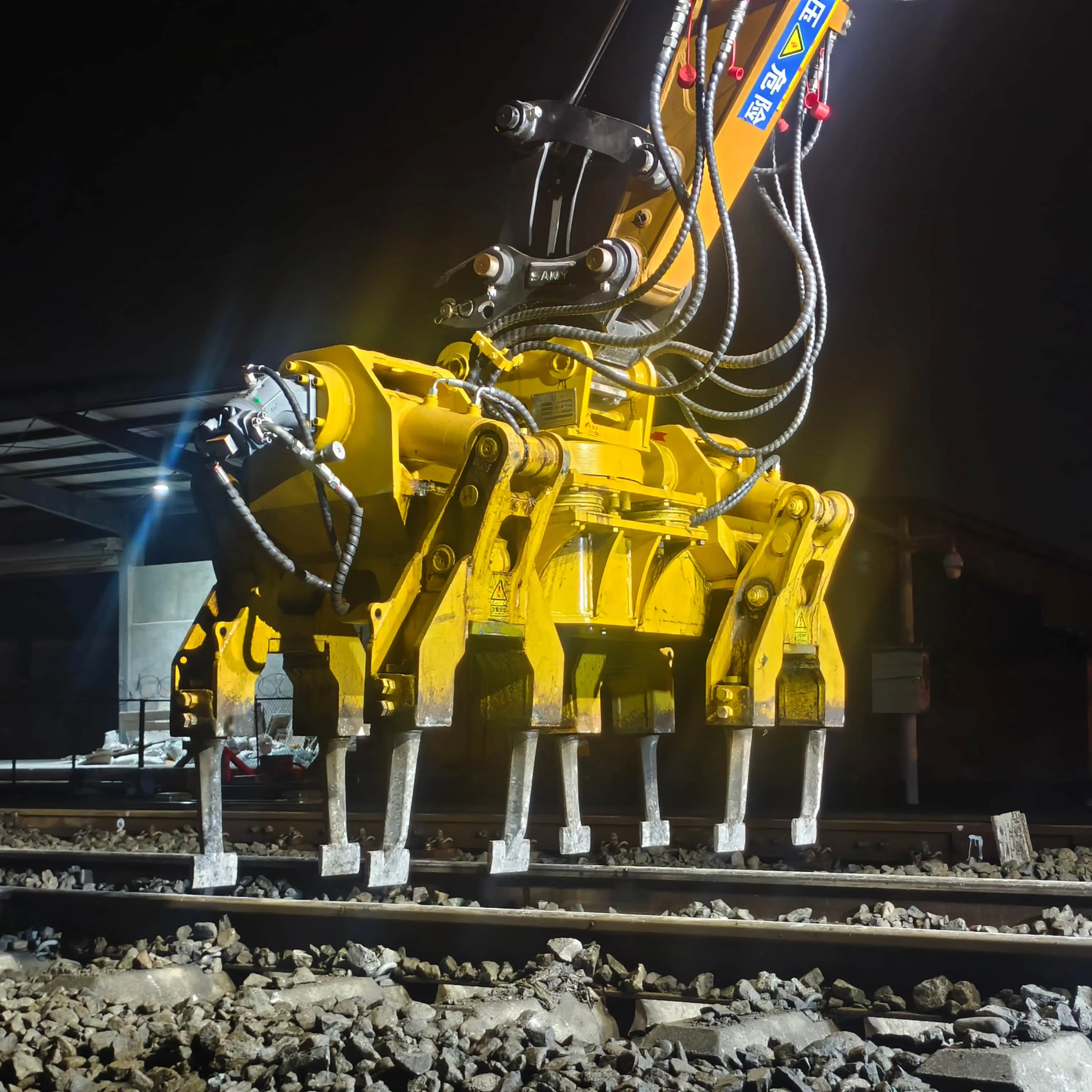

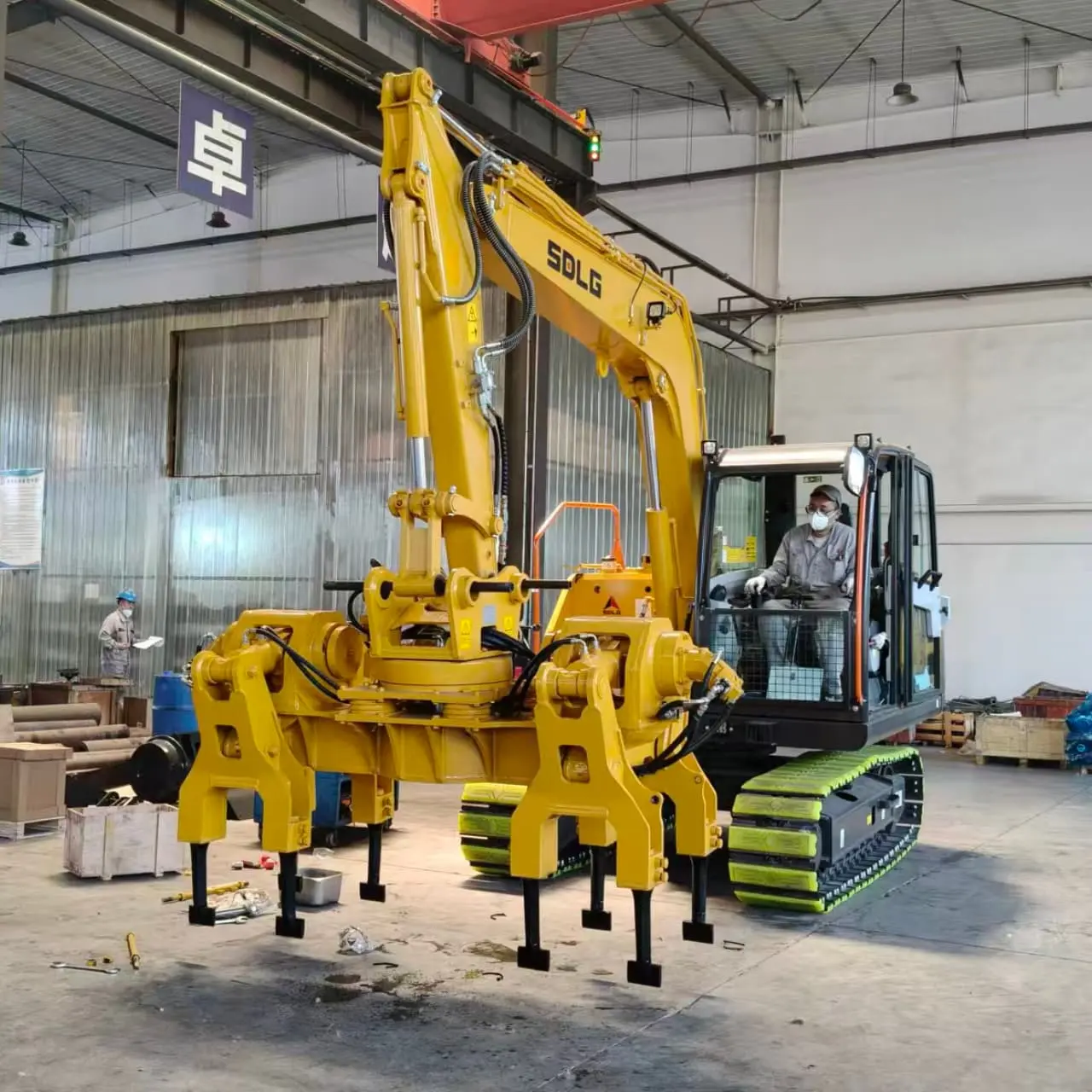

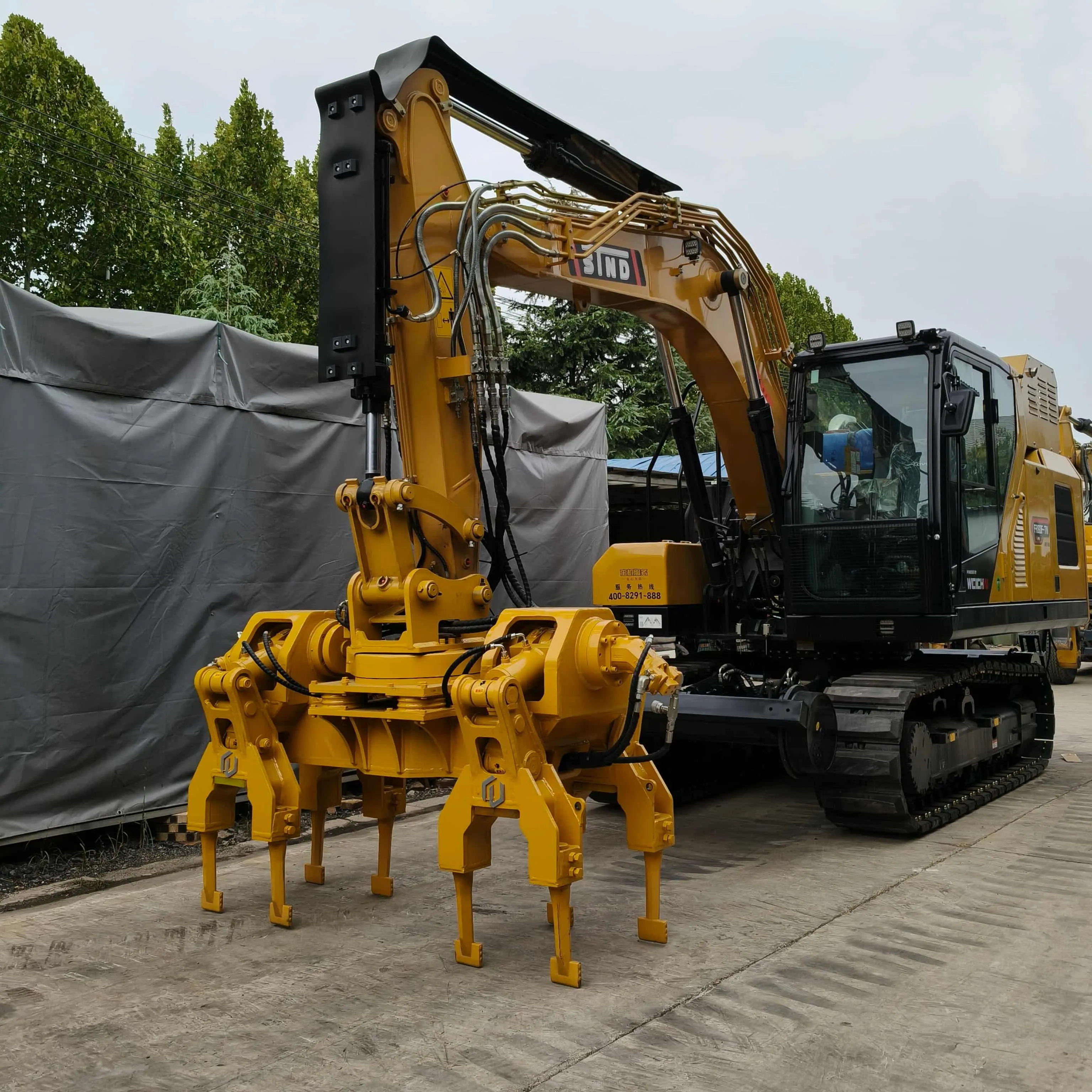

In the maintenance projects of mainline railways and heavy freight lines, compacting ballast after sleeper replacement is a core procedure to guarantee track stability and smooth train operation. Traditional single-head tampers with 4 tamping picks feature narrow operation coverage and low construction efficiency, which fail to complete large-scale track bed compaction within the limited railway track possession window. The **Double Hydraulic Ballast Tamper** developed by Shandong Tiannuo Machinery (Models TNSTDGJ150 & TNSTDCGJ150) is specially matched with 12-18 ton railway excavators. Equipped with 8 synchronous tamping picks, high-frequency vibration system, 360° full rotation and 50° outrigger tilting adjustment, it serves as a high-efficiency attachment dedicated to the maintenance of mainline railways, curved tracks and turnouts. Its core advantages are listed as follows:
1. Dual-Head 8-Pick Synchronous Operation, Construction Efficiency Doubled

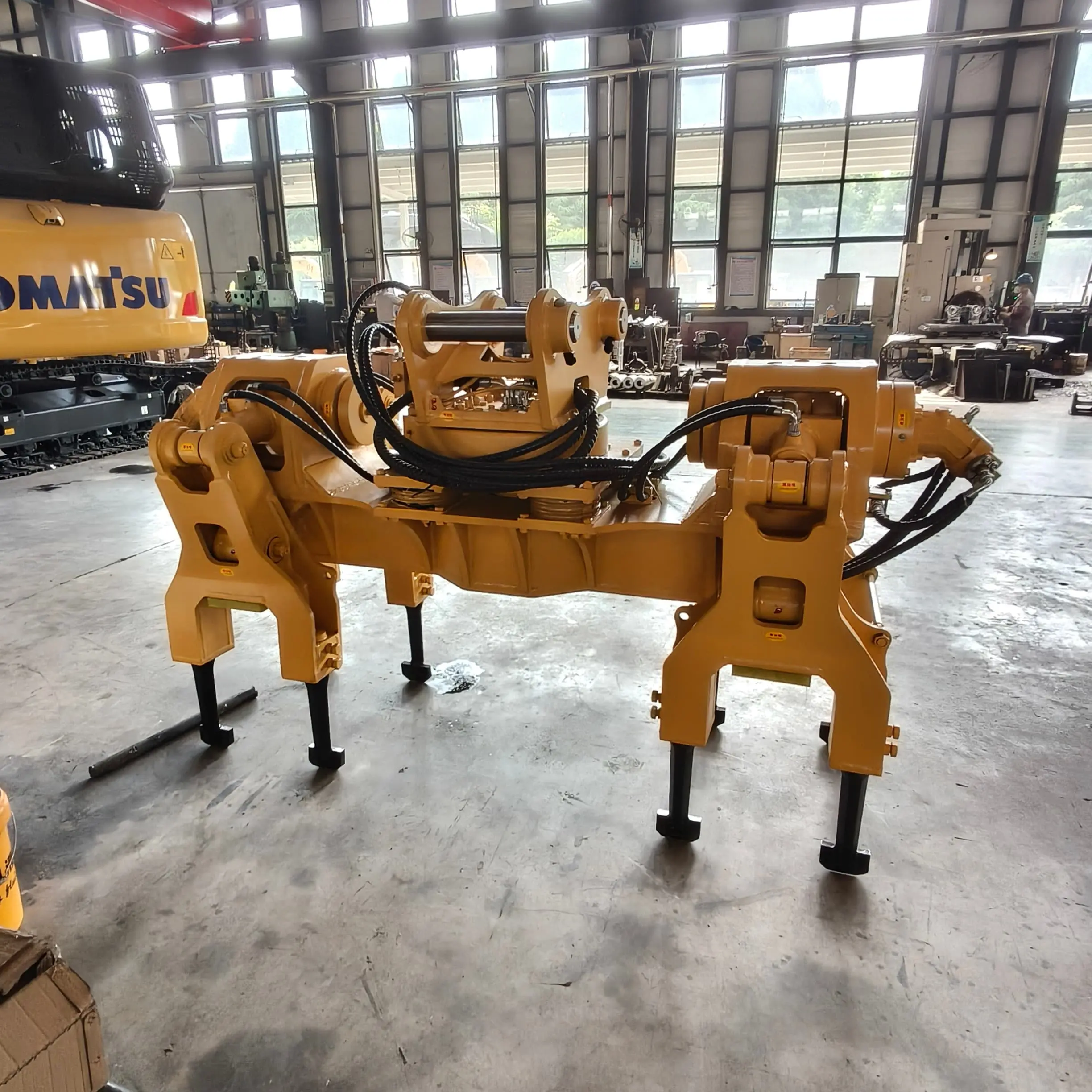

This equipment adopts two independent sets of tamping mechanisms on the left and right, with a total of 8 picks vibrating and compacting synchronously. It can finish ballast compaction on both sides of two sleepers in one single pass, doubling the working efficiency compared with traditional 4-pick single-head tampers. Both models adopt a stable high vibration frequency of 40Hz, with a maximum tamping depth of 400mm. High-frequency vibration can fully penetrate thick ballast layers, eliminate internal voids in the track bed and greatly improve ballast density.
Perfectly matched with the hydraulic output of 12-18 ton medium railway excavators, the motor’s rated working pressure reaches 400bar to supply sufficient and stable power without power attenuation under heavy load conditions. Within the same track possession time, it can complete track bed compaction for double the track mileage, greatly alleviating the tight schedule and heavy construction tasks of railway skylight maintenance. It shortens track closure duration and reduces interference with train scheduling.
2. Dual-Model Differentiated Design, Full Coverage of Straight Lines, Curves and Turnouts
Both models are compatible with two mainstream track gauges: We can customize according to your track gauge and adapt to various specifications of concrete and wooden sleepers:
(1) Standard model TNSTDGJ150: No tilting angle, with a compact and simple structure. It focuses on regular compaction for straight mainline railways, with a self-weight of 1850kg and balanced load to maintain stable continuous operation for long hours.
(2) Tilting model TNSTDCGJ150: Equipped with an adjustable 50°outrigger tilting angle, specially designed for complex sections such as curved tracks, turnouts and platforms. It can flexibly adjust the picks to fit the slope of the track bed, solving the problem of compaction blind spots of traditional tampers on curves and turnouts to achieve dead-angle-free compaction.
The whole machine supports 360° hydraulic rotation. There is no need to frequently move the excavator host; the tamping direction can be adjusted only by rotating the attachment, cutting fuel consumption and collision risks caused by frequent machine relocation.
3. Heavy-Duty Wear-Resistant Structure, Adaptable to All-Weather Harsh Railway Conditions
The main body of the whole machine is integrally welded with thickened high-strength alloy steel plates, and reinforcing ribs are added at all stress nodes to avoid deformation and cracking under long-term high-frequency vibration and ballast impact. The 8 tamping picks are forged from wear-resistant alloy steel; worn picks can be replaced separately instead of the whole set of mechanisms, significantly cutting the later cost of spare parts.
The complete hydraulic pipeline adopts a fully sealed dustproof and waterproof structure, resisting erosion from dust, rain and ballast gravel along railways to prevent valve blockage and oil leakage. The maximum motor speed reaches 5000r/min with a displacement of 56mL/r. The hydraulic system is precisely matched with automatic pressure relief overload protection to avoid equipment damage caused by overloading. The self-weight of 1850kg delivers reasonable weight distribution, preventing overload loss on the boom and hydraulic system of 12-18 ton excavators and extending the service life of the host machine.
4. Precise Hydraulic Control, Qualified Compaction Quality & Reduced Long-Term Track Defects
The equipment is equipped with an accurate hydraulic control system, which can independently adjust clamping force, vibration duration and tamping penetration depth to ensure uniform compaction density everywhere on the track bed. Manual tamping and small single-head tampers often lead to partial looseness and uneven track bed elevation. This double-head tamper realizes uniform stress on ballast on both sides of sleepers via synchronous vibration of 8 picks. The formed track bed features regular gradient and smooth drainage, fundamentally reducing track settlement, ballast pumping, gauge deviation and other track diseases, and drastically lowering the frequency of subsequent line maintenance.
The construction forming quality fully meets railway maintenance acceptance standards. One-pass construction reaches the standard without secondary re-tamping, further shortening the overall construction period.
5. Remote Cab Operation, Completely Eliminating Safety Hazards in Track Construction
Traditional manual tamping and small simple tamping equipment require workers to operate close to the track surface, bringing multiple safety risks including train collision, injury from flying ballast and pinching by equipment. All operations of the Tiannuo double hydraulic ballast tamper are remotely controlled by the excavator driver inside the closed cab. Operators do not need to enter dangerous track areas, fundamentally eliminating personal safety accidents.
The equipment is fitted with multiple hydraulic safety protections: automatic shutdown and pressure relief under overload, buffer protection against clamping overload, and buffer limit for rotation. The operation logic is intuitive and easy to master; new operators can be proficient in a short time without massive professional training costs, fully complying with all requirements of railway construction safety specifications.
6. Quick Disassembly & Multi-Functional Utilization, Cutting Fleet Equipment Procurement Cost
The attachment adopts a standard pin connection structure, and the whole disassembly and assembly process only takes 5-10 minutes without pipeline or structural modification on the excavator host. After finishing track bed tamping work, it can be quickly disassembled and replaced with other railway dedicated attachments including sleeper clamps, ballast ploughs, slope cleaners and hydraulic breakers. One railway excavator can complete multiple maintenance procedures such as sleeper replacement, ballast compaction, ballast leveling, slope shaping and crushing.
Railway maintenance teams do not need to purchase multiple single-function dedicated equipment separately, greatly reducing fixed asset investment, improving the annual utilization rate of excavators and minimizing idle loss.
7. Full-Life Cycle Economic Advantages with Lower Long-Term Operation & Maintenance Cost
(1) Sharply reduced labor cost: One single operator can finish tamping work that originally required multiple staff to cooperate, cutting labor expenditure for frontline maintenance.
(2) Lower track possession construction cost: Doubled working efficiency shortens track closure time, avoiding compensation and scheduling costs caused by train delays and diversions.
(3) Cheap daily maintenance: Separately replaceable wearing picks and low equipment failure rate reduce downtime and economic loss from maintenance.
(4)Saving long-term line maintenance cost: Uniform and compacted track bed reduces track deformation diseases and lowers the frequency of annual major line repairs and inspections.
High-quality railway attachments represent long-term engineering investment. The Tiannuo Double Hydraulic Ballast Tamper balances efficiency, safety and durability, making it the optimal solution for the maintenance of mainline railways, heavy freight lines, curves and turnouts.
As emphasized on Tiannuo Machinery’s official website, premium heavy-duty attachments create sustainable value for railway contractors, bringing stable cost reduction and efficiency improvement to all track maintenance projects.
