What are the advantages of slope cleaner？
In regular railway maintenance projects, ballast cleaning, trimming and slope forming on both sides of rails are essential processes to guarantee track drainage performance and safe train operation. Conventional manual slope finishing brings excessive labor cost, low working efficiency and poor flatness of finished slope, and it cannot finish large-area shaping within limited railway skylight maintenance hours. Developed by Shandong Tiannuo Construction Machinery, the excavator-mounted slope cleaner is professionally customized for railway side slope finishing works. With two mature models including single-blade TNDD75 and double-cylinder TNBP75, this attachment owns flexible angle adjustment, wide effective working width and outstanding structural durability, becoming the preferred equipment for modern railway slope maintenance. Its core advantages are listed as below.

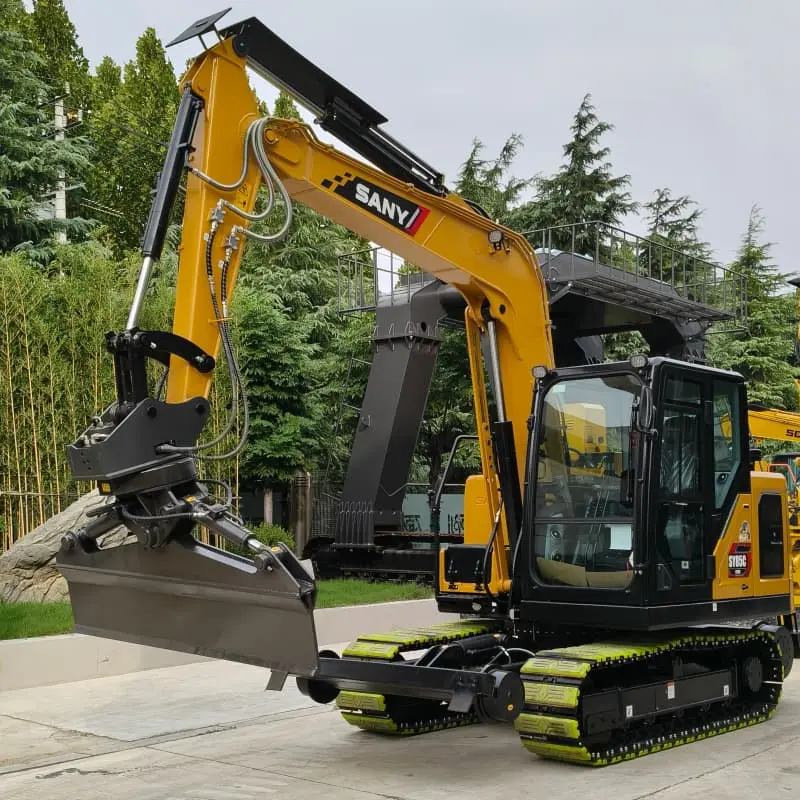

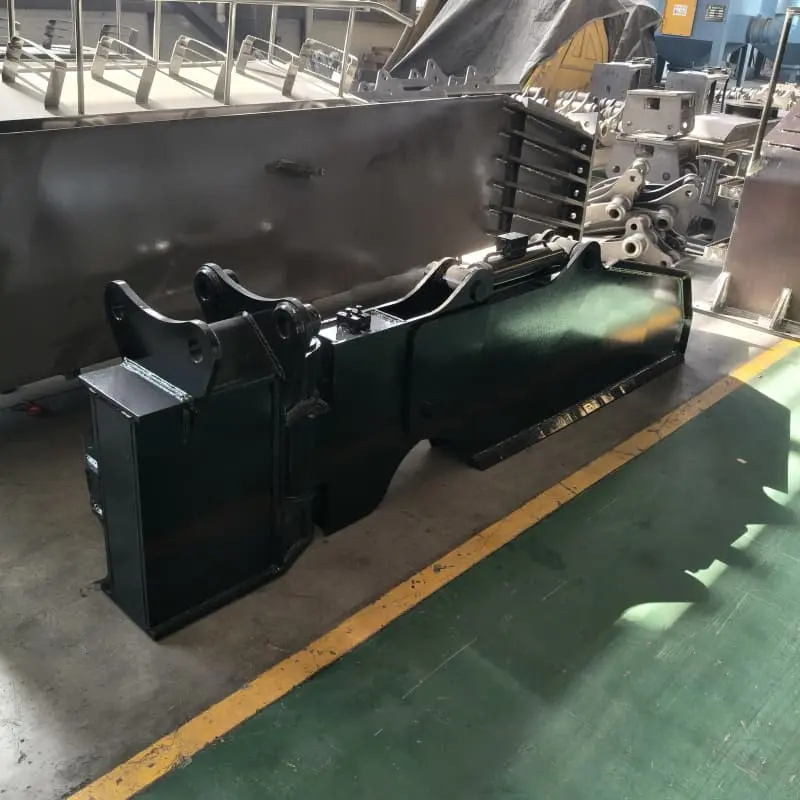

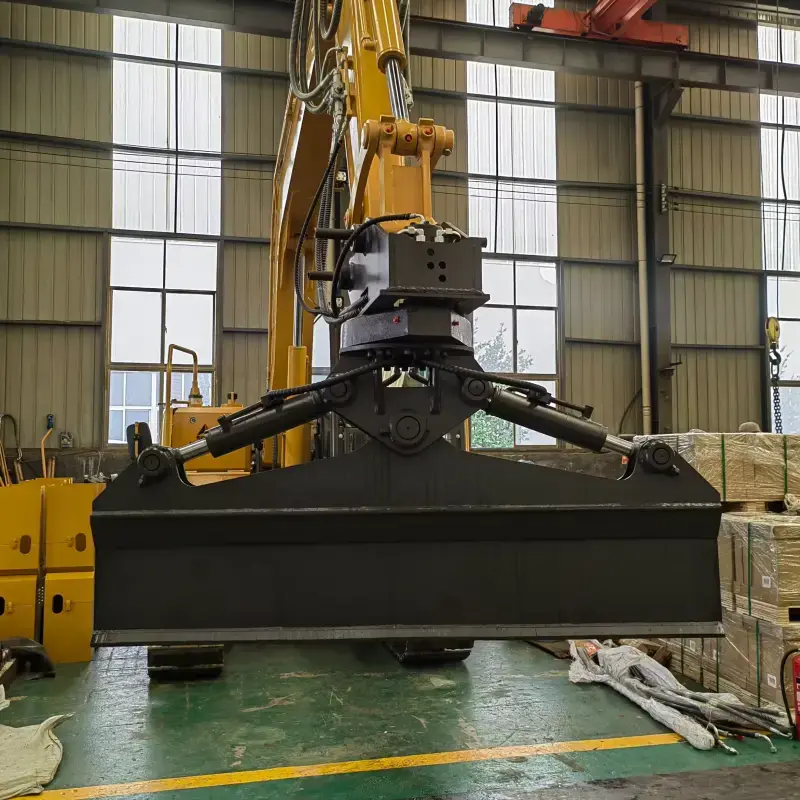

First of all, dual-type differentiated design satisfies diversified on-site construction requirements for railway maintenance. Both TNDD75 and TNBP75 are applicable to 7-10 ton excavators and fit 1000mm, 1435mm, 1520mm three common track gauges to cover narrow-gauge, standard-gauge and broad-gauge railway lines. TNDD75 single-blade slope cleaner has 1560mm effective working width, 715mm maximum working height and 40°adjustable working angle, which is specially designed for steep slopes and thick accumulated ballast; the large integral cutting blade can scrape and level surplus ballast in one single pass to improve working speed on steep slope sections. TNBP75 double-cylinder model comes with 2000mm ultra-wide working width and 35°working angle, equipped with dual synchronous hydraulic cylinders to deliver stable clamping and scraping force, ideal for flat and large-range slope finishing to form smooth and uniform side slopes. The two options allow railway contractors to pick proper model based on actual slope gradient and ballast stacking condition to maximize construction efficiency.
Secondly, full-range flexible angle regulation realizes dead-angle-free slope trimming. Both models support 360° full hydraulic rotary function plus independent working angle adjustment, so operators can freely change the leaning angle of cutter blade according to real-time slope gradient without frequent moving the whole excavator host. When dealing with curved tracks, turnouts and irregular slope sections that are hard for traditional manual or fixed-type cleaning tools, the slope cleaner can rotate and incline flexibly to closely fit the natural slope surface, completing ballast gathering, spreading and trimming continuously in one workflow. It saves lots of time on excavator relocation and greatly cuts down extra fuel consumption and potential collision risks during frequent machine shifting. Relying on precise hydraulic angle control, finished slope keeps consistent gradient and neat surface, effectively optimizing track drainage and avoiding water accumulation-induced ballast mud pumping and track subsidence problems.
Thirdly, ultra-wide working width greatly boosts working efficiency and shortens skylight construction period. Traditional manual slope finishing only finishes dozens of meters of slope per working shift with uneven forming effect, while Tiannuo slope cleaner can finish dozens of times longer slope length in the same time thanks to its 1560mm or 2000mm one-pass working width. Operated by one single driver inside excavator cabin, it can finish ballast gathering, slope trimming and compaction preparation sequentially in one continuous operation, cutting manual dependence drastically. Under tight skylight time constraints of railway maintenance, this high-efficiency attribute helps finish scheduled slope renovation within required maintenance window, minimizing interruption to normal train timetable and avoiding economic loss caused by delayed construction and train detour.
Fourth, robust heavy-duty structure adapts to harsh outdoor railway working environment. The whole cutter body and blade are fabricated from thickened high-strength wear-resistant steel plate with intensive welding process; key stressed positions are reinforced with additional rib plates to resist continuous impact and abrasion from hard railway ballast. The cutting edge adopts replaceable wear-resistant alloy strip; once worn after long-term scraping work, users only replace the edge strip instead of the whole blade to lower spare part replacement expense. The matched hydraulic system features fully sealed pipeline structure, which effectively blocks dust, gravel debris and rainwater from entering internal hydraulic components, reducing oil leakage and mechanical breakdown rate even under dusty and humid field working conditions. Reasonable weight configuration: TNDD75 is 635kg and TNBP75 is 565kg, proper dead load avoids overloading of small 7-10 ton excavator arm and prolongs the service life of host machine hydraulic system.
Fifth, cab remote operation eliminates manual safety hazards and lowers labor intensity. Original manual slope cleaning requires workers to walk and operate closely beside running railway lines, facing severe safety risks including train collision and flying ballast injury. With Tiannuo slope cleaner, all operation commands are finished by driver inside closed excavator cab; no ground staff need to approach the track working zone anymore to fundamentally eliminate on-site personal injury risks. The hydraulic control system is set with built-in overload protection mechanism, which automatically stops hydraulic output when bearing excessive load to protect attachment and excavator arm from overload damage. Simple operation logic enables new operators to get familiar with manipulation quickly without long-period professional training, cutting team labor training cost.
Sixth, quick switching design realizes multi-functional utilization of excavator to save equipment procurement investment. The slope cleaner connects with excavator arm via standard pin shaft, mounting and dismounting can be completed within several minutes without any complicated host modification. After finishing slope trimming tasks, users can rapidly swap it with sleeper clamp, ballast tamper, ballast plough or hydraulic breaker to convert the same excavator into sleeper replacing machine, ballast compacting equipment or crushing machine. For railway maintenance fleets, one single excavator can handle multiple construction processes instead of purchasing various special-purpose single-function machines, remarkably reducing fixed asset input and improving equipment utilization rate throughout the whole year.
Finally, prominent economic benefits reduce full-cycle operation cost for railway operators. First, labor expenditure drops sharply as one operator replaces 8~10 manual workers originally needed for slope finishing. Second, high working efficiency shortens skylight construction duration and reduces extra cost from train delay compensation. Third, replaceable wearing parts and low breakdown frequency keep daily maintenance expense at a low level and cut machine idle downtime. Fourth, neatly trimmed slope improves track drainage and reduces later track diseases such as ballast loss and roadbed settlement, decreasing long-term routine maintenance frequency and subsequent repair cost. As Tiannuo Machinery mentioned on its official website, high-quality construction attachments are valuable long-term investment; choosing Tiannuo slope cleaner brings stable efficiency improvement and sustainable cost reduction for all railway maintenance projects.
