What Are The Advantages Of Double Head Hydraulic Ballast Tamper？
Railway track maintenance is one of the most demanding and critical tasks in the global rail industry. The stability of ballast directly determines the safety, smoothness and service life of railway lines. When carrying out sleeper replacement, track renovation and daily line maintenance projects, construction teams are always looking for efficient, reliable and cost-effective ballast compaction equipment. Our double head hydraulic ballast tamper, as a professional excavator-mounted rail maintenance attachment, has become the preferred solution for countless railway contractors and railway operation departments around the world.

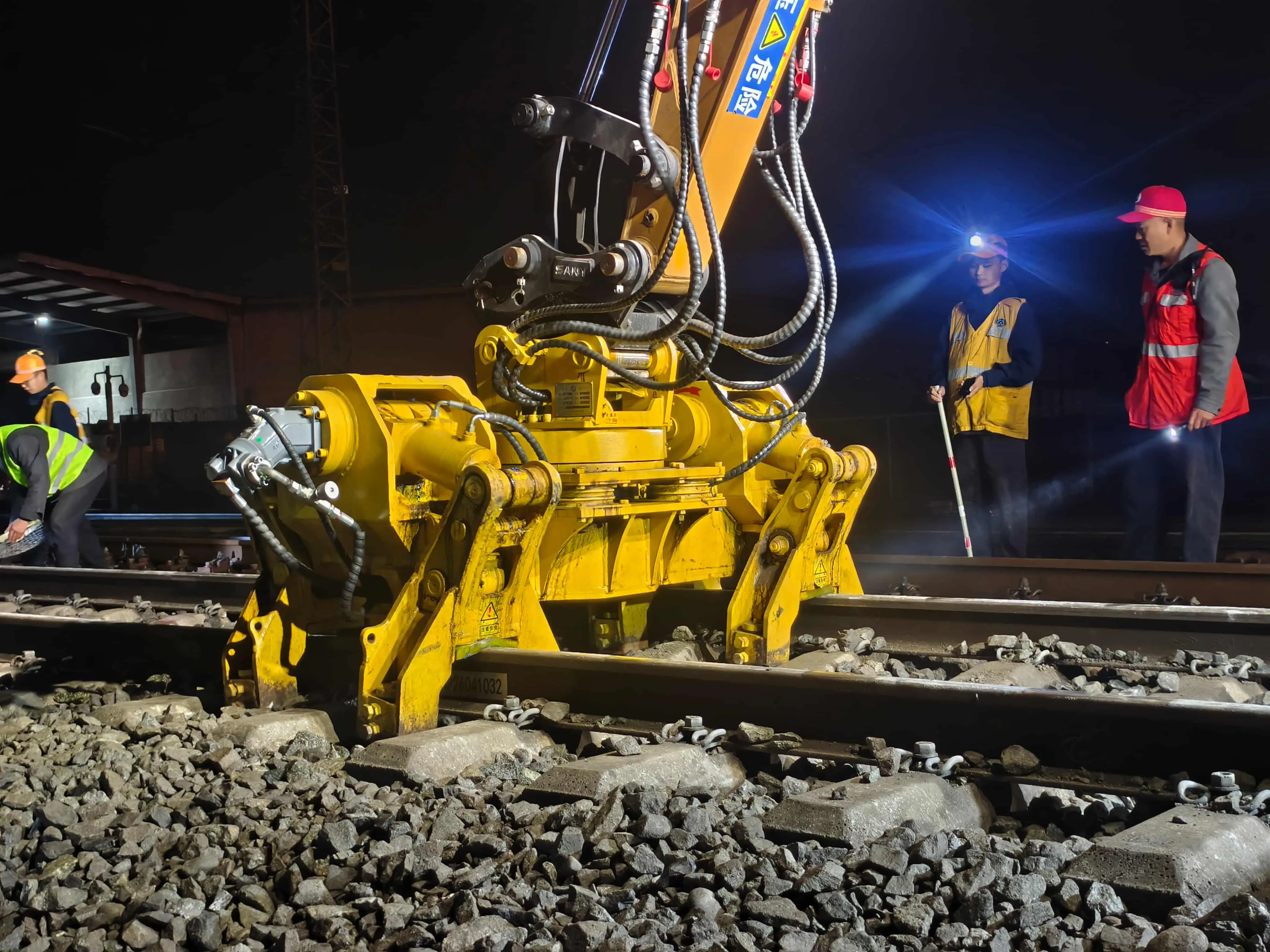

The most prominent advantage of our double head hydraulic ballast tamper is its outstanding working efficiency. Equipped with 8 tamping heads, this machine can compact the ballast on both sides of sleepers at the same time in a single operation. Compared with single head tamping equipment that only handles one side at a time, it greatly cuts down the total working cycle time. Its vibration frequency reaches 40Hz, which can quickly loosen and squeeze the ballast stones to form a dense and stable ballast bed. The maximum tamping depth is 400mm, which fully meets the ballast compaction requirements of standard railway tracks and turnouts. Whether you are working on main railway lines, station tracks or complex turnout sections, this tamper can finish compaction work in a short maintenance window, which is extremely vital for night track maintenance work with tight time schedules.

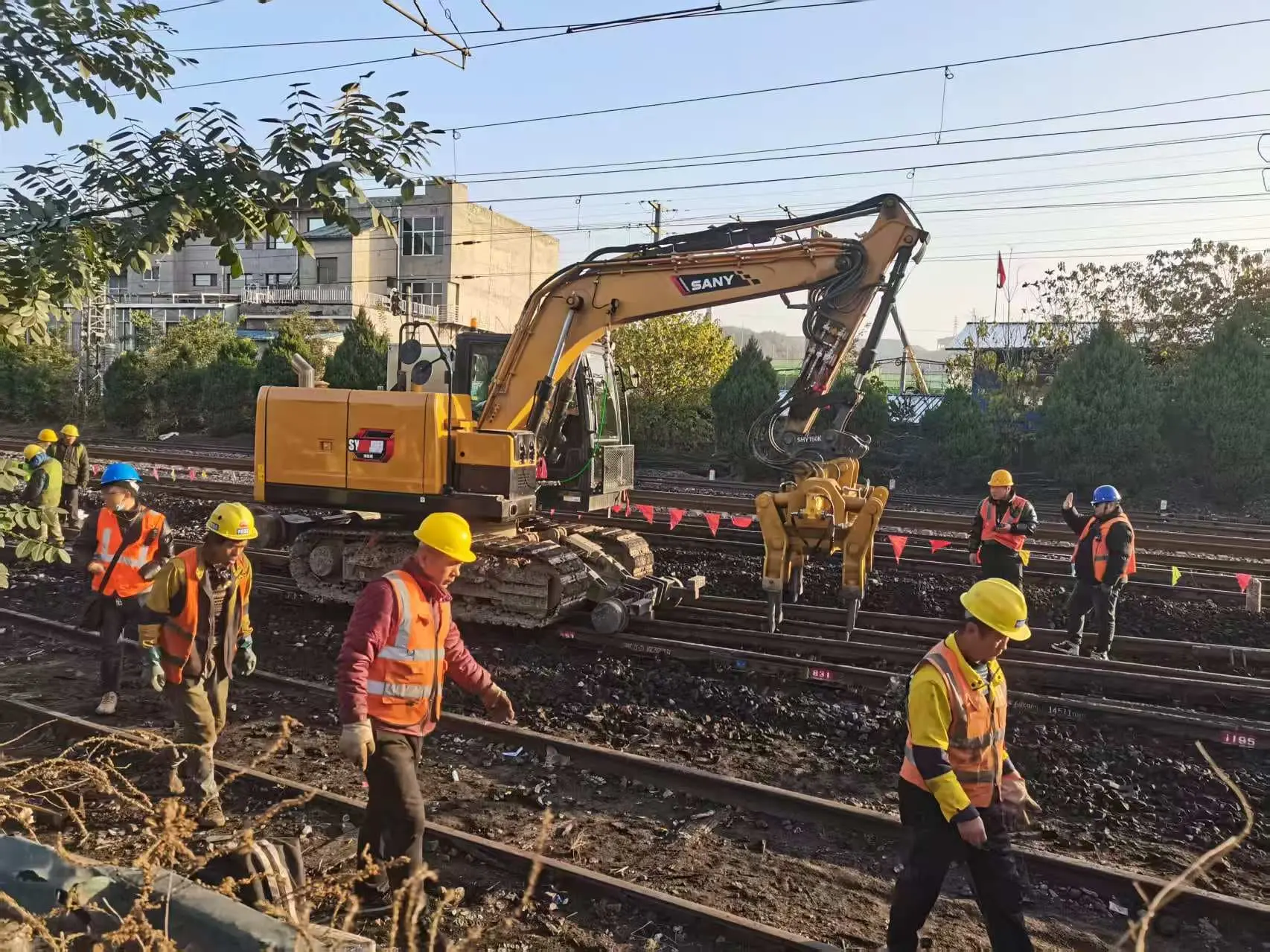

Strong adaptability is another core strength of our double head hydraulic ballast tamper. This attachment is designed to match 12 to 18 tons excavators, and it supports two common track gauges: 1435mm standard gauge and 1520mm wide gauge. It features a full 360-degree rotation function, allowing operators to freely adjust the working angle without repositioning the host excavator. The clamping range covers 390mm to 625mm, so it can fit different types of sleepers widely used in different countries. We provide two optional configurations for customers. The standard model keeps the outrigger tilting angle at 0 degrees, while the upgraded version comes with a 50-degree outrigger tilting angle, which can adapt to more complex terrain and uneven track sites. What is more, we support customized production. We can adjust parameters and structure according to your local track conditions, excavator model and special construction requirements to make the equipment perfectly match your project.

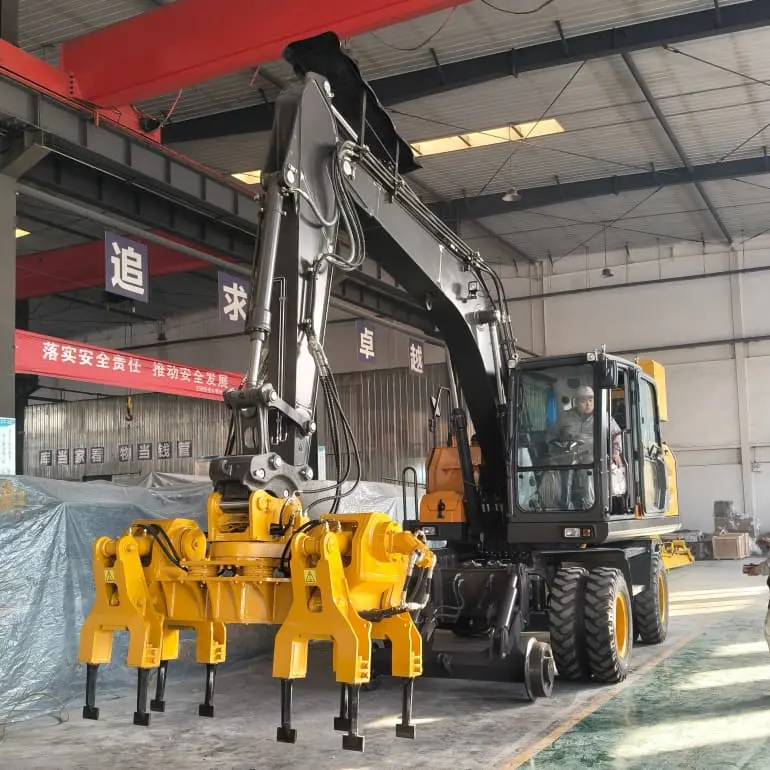

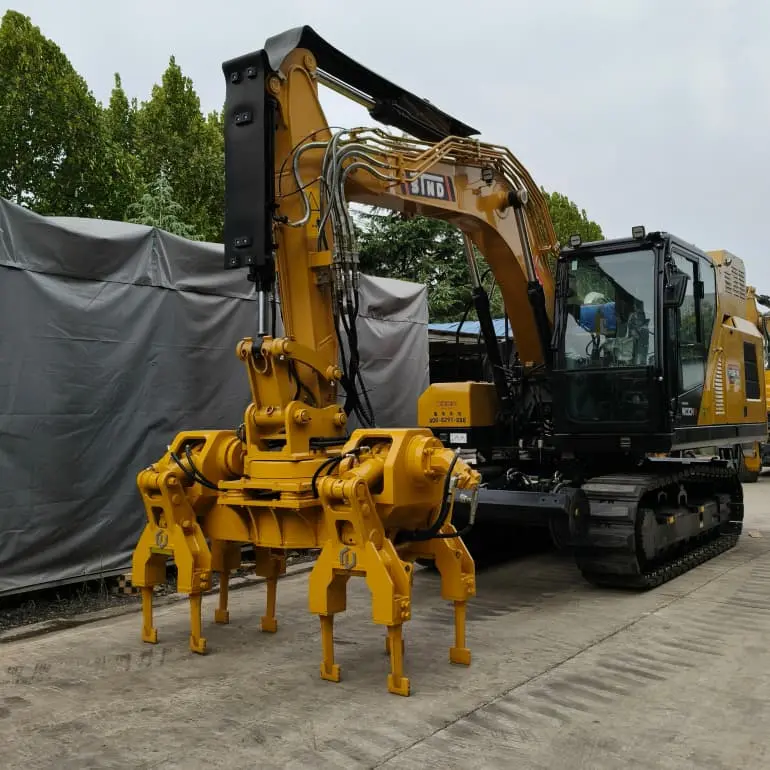

This double head hydraulic ballast tamper adopts heavy-duty welded steel structure, which brings excellent structural rigidity and wear resistance. All key hydraulic components are carefully selected, with a rated working pressure up to 400 bar. The hydraulic motor can run steadily at a maximum speed of 5000 r/min, delivering stable and powerful vibration force continuously in long-hour continuous operation. The whole machine weighs 1850kg with optimized overall dimension of 2650×1200×1550mm. The reasonable weight distribution ensures stable operation on the track without damaging rails or sleepers. Our engineers fully consider the harsh working environment of railway sites. All hydraulic pipelines and joints are equipped with anti-shock and anti-leakage protection. The tamping picks are made of high-strength alloy material, resisting impact and abrasion, which greatly extends service life and reduces your spare parts replacement frequency and maintenance cost.
Safety and easy operation are also important advantages of our product. The tamper is fully controlled by the excavator’s cab hydraulic system. Operators can complete clamping, rotating and tamping operations without getting off the machine, which effectively reduces the risk of personnel injury on busy railway construction sites. The compact structure design makes it flexible to move in narrow track spaces. It can be quickly installed and removed on the excavator through connecting pins, so one excavator can switch between different attachments for multiple construction tasks. This multi-purpose design saves your investment in additional special railway maintenance vehicles.
Many railway projects face strict budget limits. Our double head hydraulic ballast tamper offers a much more economical choice than large self-propelled tamping trains. It does not need special transportation vehicles and complicated daily maintenance. As an excavator attachment, you can use your existing excavator host, which greatly lowers the total procurement cost. Our factory provides comprehensive after-sales service, including operation guidance, technical training and spare parts supply for global customers. No matter you are a large state-owned railway operator or a local railway engineering contractor, this double head hydraulic ballast tamper can bring stable performance and high return on investment for your track maintenance projects.
If you are searching for reliable ballast tamping equipment for your railway renovation and maintenance projects, our double head hydraulic ballast tamper is your ideal option. Contact us now to get detailed technical data, customized solutions and quotation.
