What are the Advantages of Sleeper Clamp?

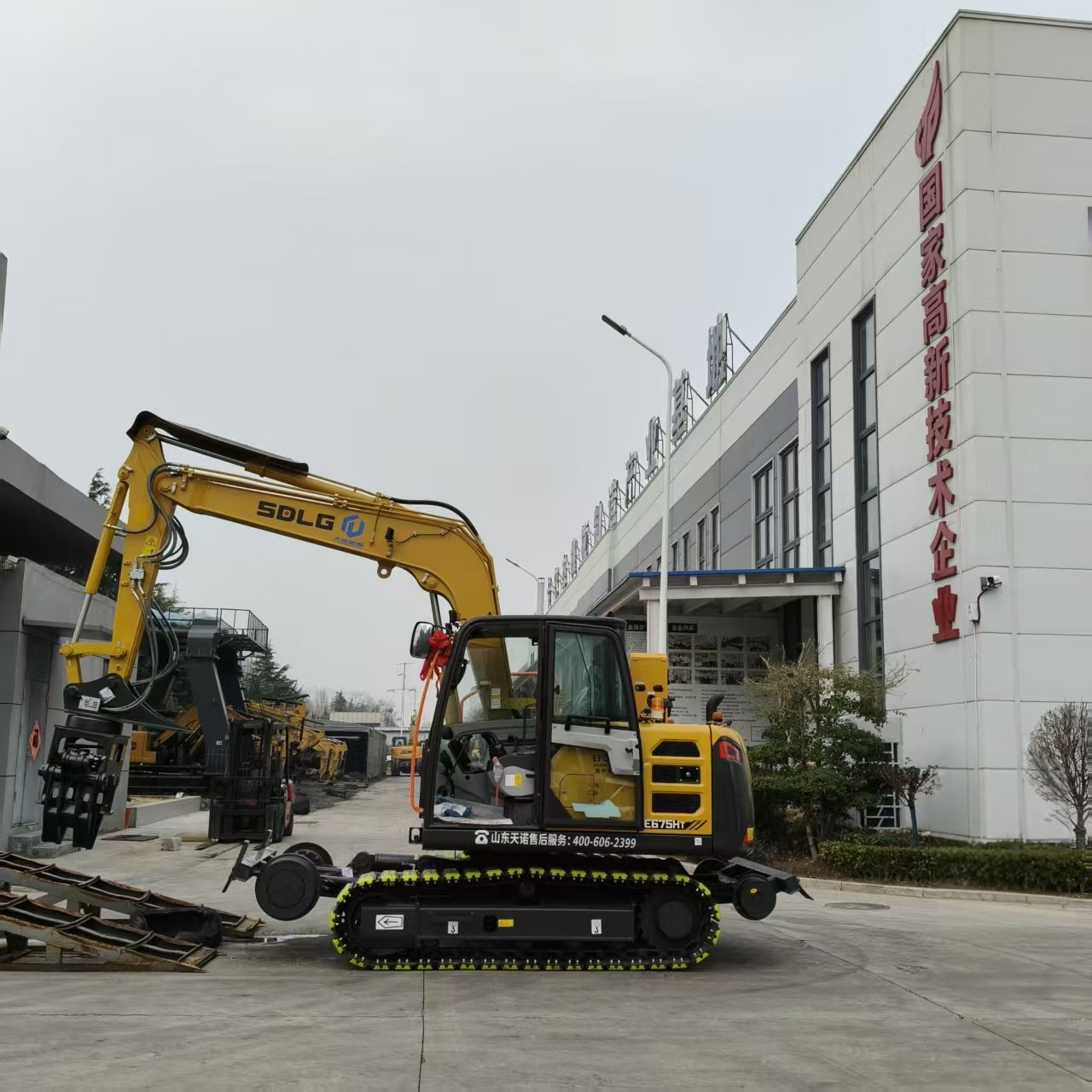

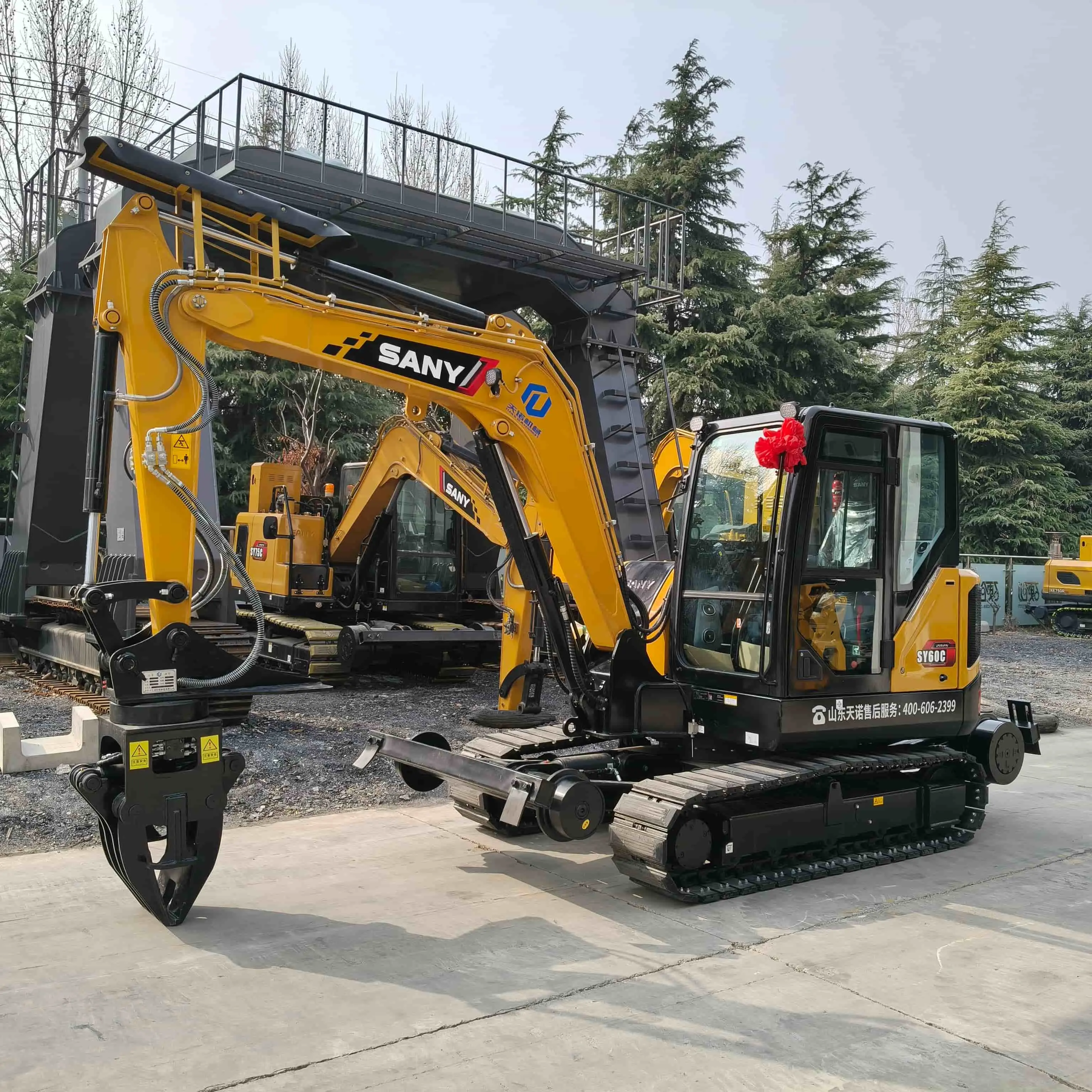

Railway sleeper clamp is a core procedure of track maintenance. The traditional manual replacement of railway sleepers requires a large amount of labor and slow construction speed, which makes it difficult to complete large-scale rail sleeper replacement within a limited track occupancy time.The excavator-mounted sleeper clamp developed by Shandong Tiannuo Machinery is specially designed for grabbing, moving and installing sleepers. It can quickly pull old sleepers out from the track bed and place new sleepers under steel rails. As a key attachment for mechanized sleeper replacement, it is widely used in all kinds of railway maintenance projects.

1. High-efficiency Mechanized Sleeper Replacement, Optimize Track Possession Time

The sleeper clamp realizes fully mechanized sleeper replacement, with a working speed of 30-60 sleepers per hour. Its working efficiency is far higher than manual operation. It can firmly grab old sleepers, pull them out of the track bed, transport and accurately position new sleepers under rails, completing sleeper lifting, moving and placement continuously.

During railway maintenance with tight time limits, it greatly accelerates construction progress, shortens track closure time, and reduces the disturbance to normal train operation, solving the pain point of slow manual construction.

2. Two Models Available, Compatible with Multiple Excavators and All Track Gauges

Tiannuo provides two mature sleeper clamp models to meet different construction requirements:

TNZMJ75: Matches 7-10 ton small excavators, self-weight 550kg. Compact and flexible, suitable for sleeper replacement on branch lines, narrow sections and tunnels.

TNZMJ150: Matches 13-15 ton medium excavators, self-weight 1100kg. It owns stronger clamping capacity and fits mass sleeper replacement projects on main railways.

Both models support 1000/1435/1520mm applicable track gauge, compatible with narrow gauge, standard gauge and broad gauge railways. The optimized clamp opening fits concrete sleepers, wooden sleepers and other sleeper types. The attachment supports 360° free rotation, operators can align sleepers precisely without frequent movement of excavators, and it performs well on curved tracks and turnout areas.

3. High-strength Material Structure, Wear-resistant, Impact-resistant and Long Service Life

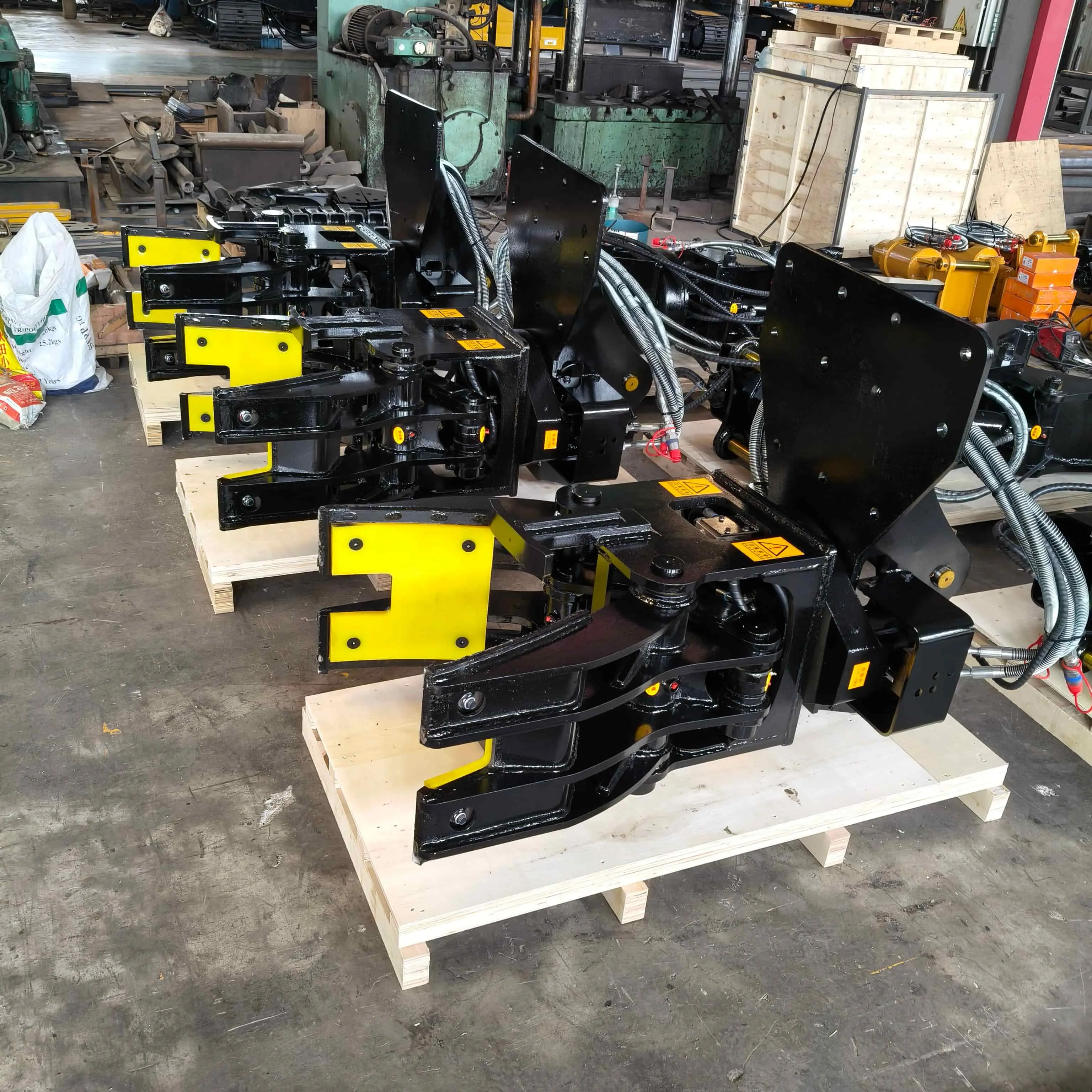

The whole sleeper clamp is welded by high-strength alloy steel Q460+WH60C, featuring excellent impact resistance and wear resistance. It is not easy to deform or crack under heavy load. The thickened reinforced jaws offer stable biting force to prevent slipping when grabbing sleepers. It can work steadily under harsh track conditions covered with ballast, gravel and dust.

Wear-resistant bushings are installed at key hinge positions to reduce friction loss. It needs simple daily maintenance and effectively extends the service life of the whole equipment.

4. Stable Clamping Performance, Improve Construction Safety

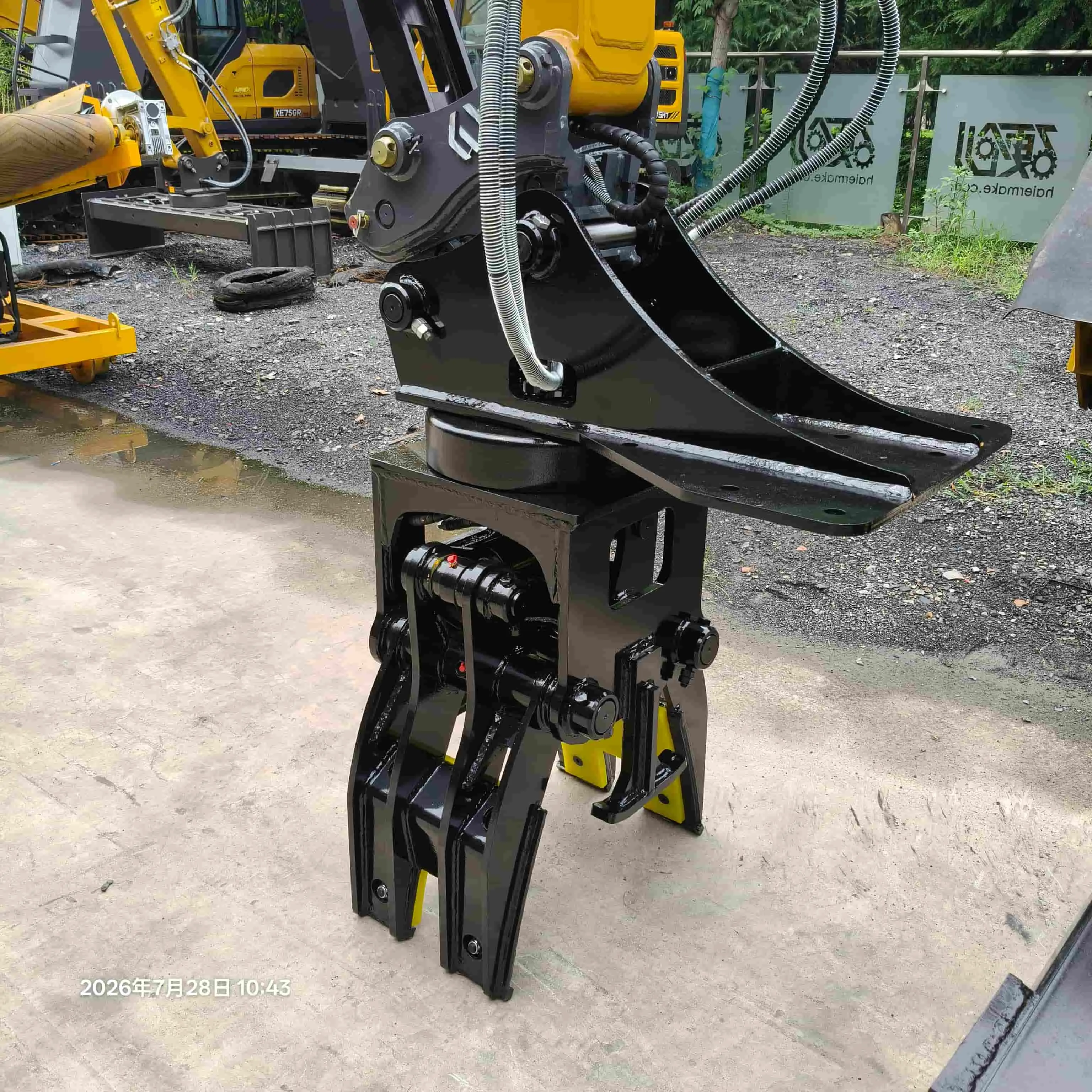

Hydraulic clamping force of the sleeper clamp is adjustable. Multi-point jaws hold sleepers tightly to avoid sliding and shaking during transportation. The equipment is remotely controlled by the excavator operator inside the cab. Workers no longer need to stand close to tracks to carry sleepers, fundamentally avoiding safety risks such as crushing and impact injury, fully complying with railway safety construction standards.

The rotation unit runs smoothly with stable buffer start and stop, preventing collision with rails and track bed during sleeper moving and protecting original track facilities.

5. Quick Installation and Removal, Realize Multi-function of Excavators

The sleeper clamp adopts standard connection design. It can be mounted on excavators rapidly with pins without complicated modification. After sleeper replacement, it can be replaced quickly with other railway attachments including ballast plough, ballast sweeper and ballast tamper. One single excavator can complete multiple maintenance processes: sleeper exchange, ballast shaping, sweeping and compaction.

It maximizes the utilization rate of existing construction machinery, avoids extra investment on special sleeper replacement machines and reduces equipment procurement costs for maintenance companies.

6. Lower Operating Cost and Outstanding Long-term Economic Benefits

Mechanized construction with sleeper clamp greatly cuts the number of on-site workers and reduces labor expenses. High working efficiency shortens track occupation time and reduces losses caused by line suspension. The equipment has low failure rate, and wearable parts can be replaced easily with low maintenance cost.

Mechanized operation ensures accurate placement of sleepers, minimizing secondary adjustment work, and continuously cutting comprehensive construction costs for railway maintenance projects.sleeper clamp.
