Rail Transfer Guide（Rail Threader）
- Product Description

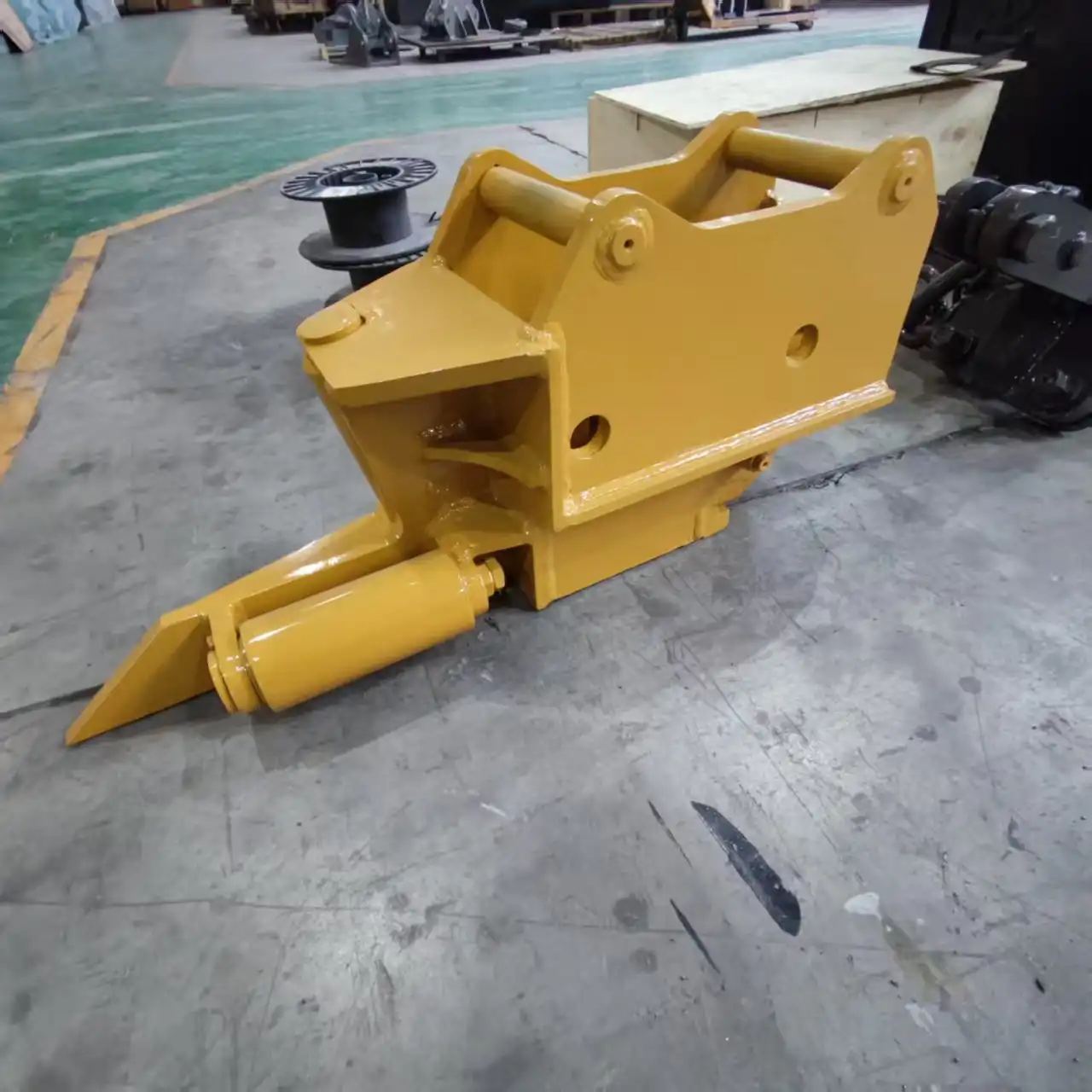

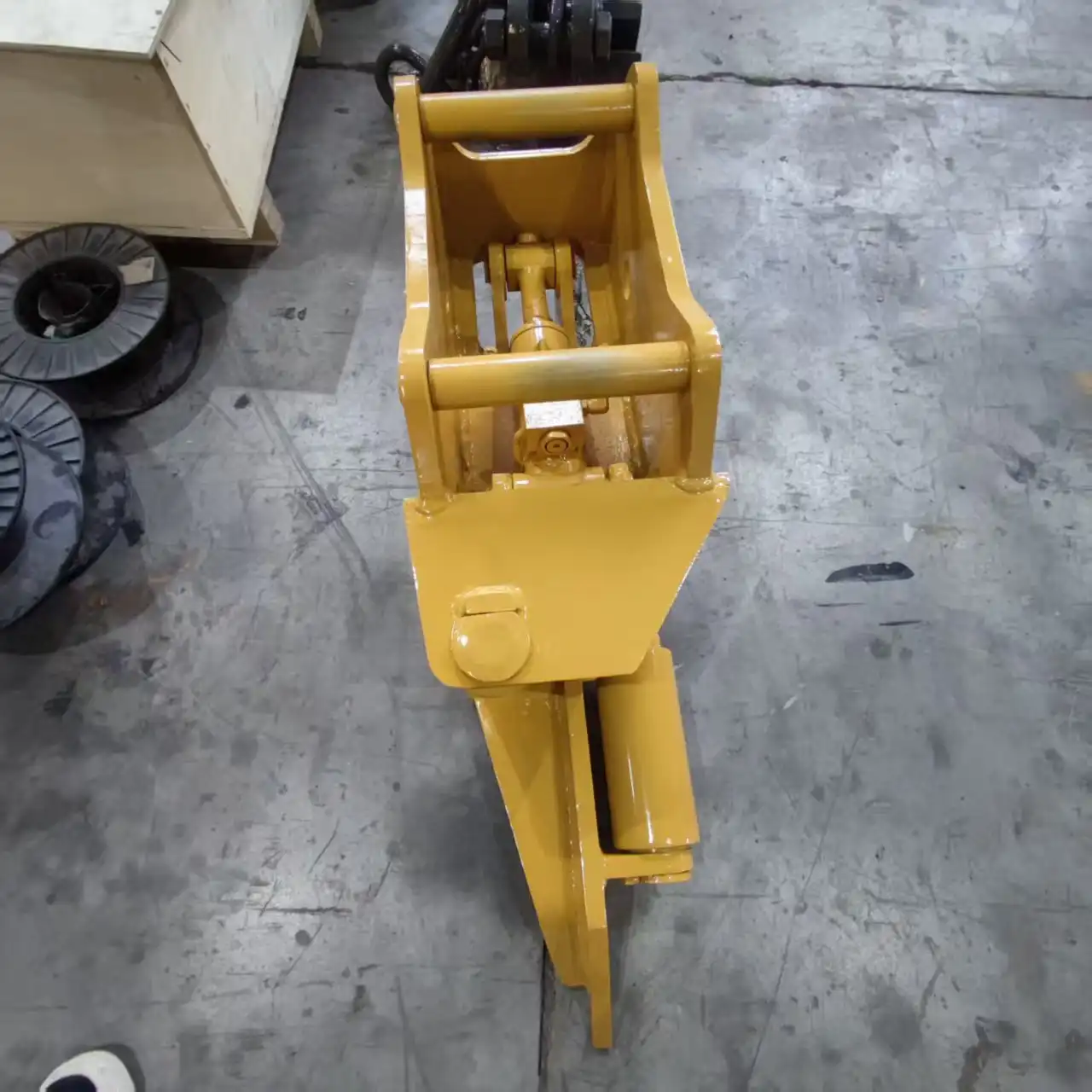

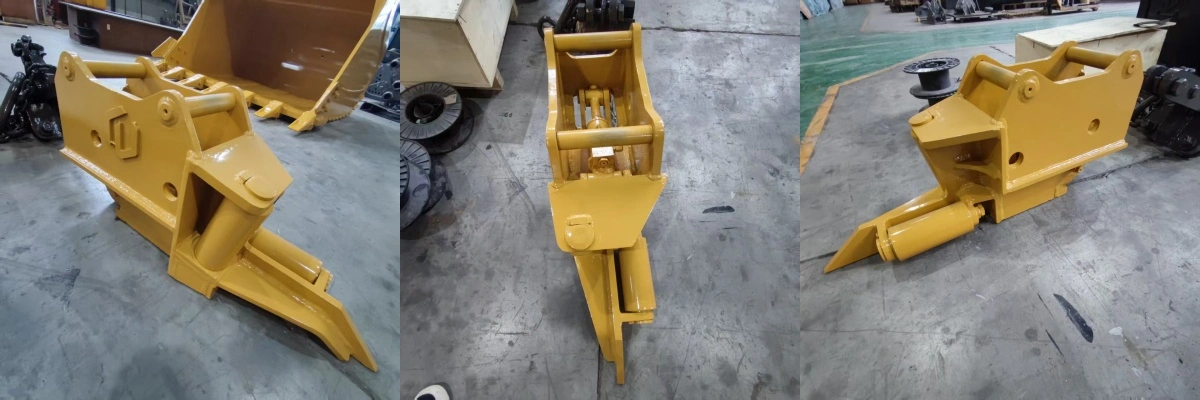

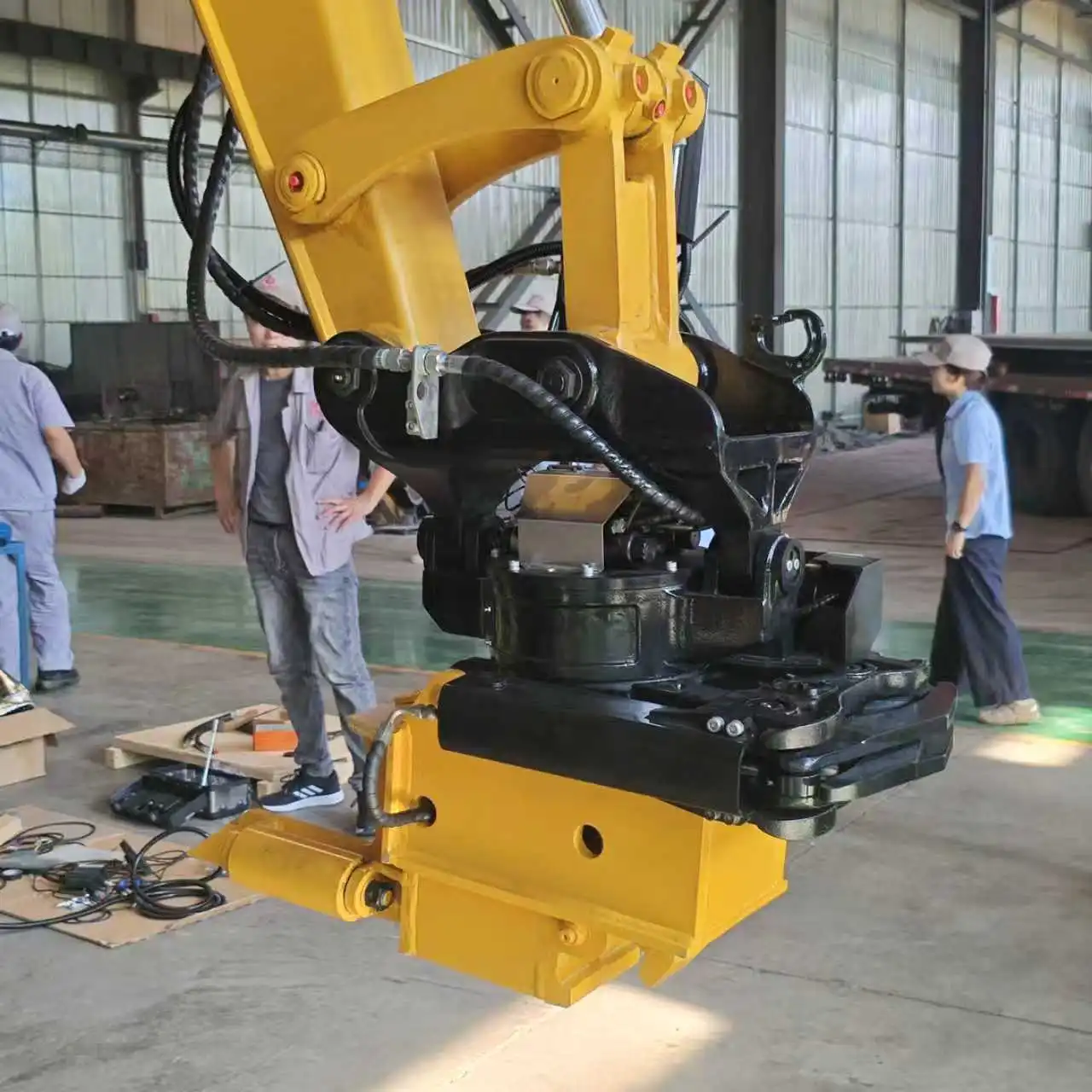

This rail transfer guide（Rail Threader） is designed for the transportation of railway tracks，it equipped with hydralic tiltrotator,it is an efficient rail handling attachment for railway maintenance construction. Vertical and horizontal rollers can provide low-resistance support, allowing the guide to move effortlessly along the steel rails, completing the movement and transportation of tracks. Additionally, the guide is equipped with a gripping clamp mechanism, enabling precise adjustment of the rail position during operation.
Specification
| ltem/Model | TNZYJ75 |
| Applicable Models(ton) | 6-9 |
| Applicable rail type(mm) | 43/50/60/75 |
| Tilt angle | 45 |
| Rotation angle | 360 |
| Flow rate(L/min) | 18-38 |
| Maximum working pressure(bar) | 220 |
| Finger clip opening(mm) | 310 |
| Clamp opening(mm) | 81 |
| Mechanical clamp opening(mm) | 176 |
| Weight | 476 |
| Package size | 1200*1000*950 |
Key Features

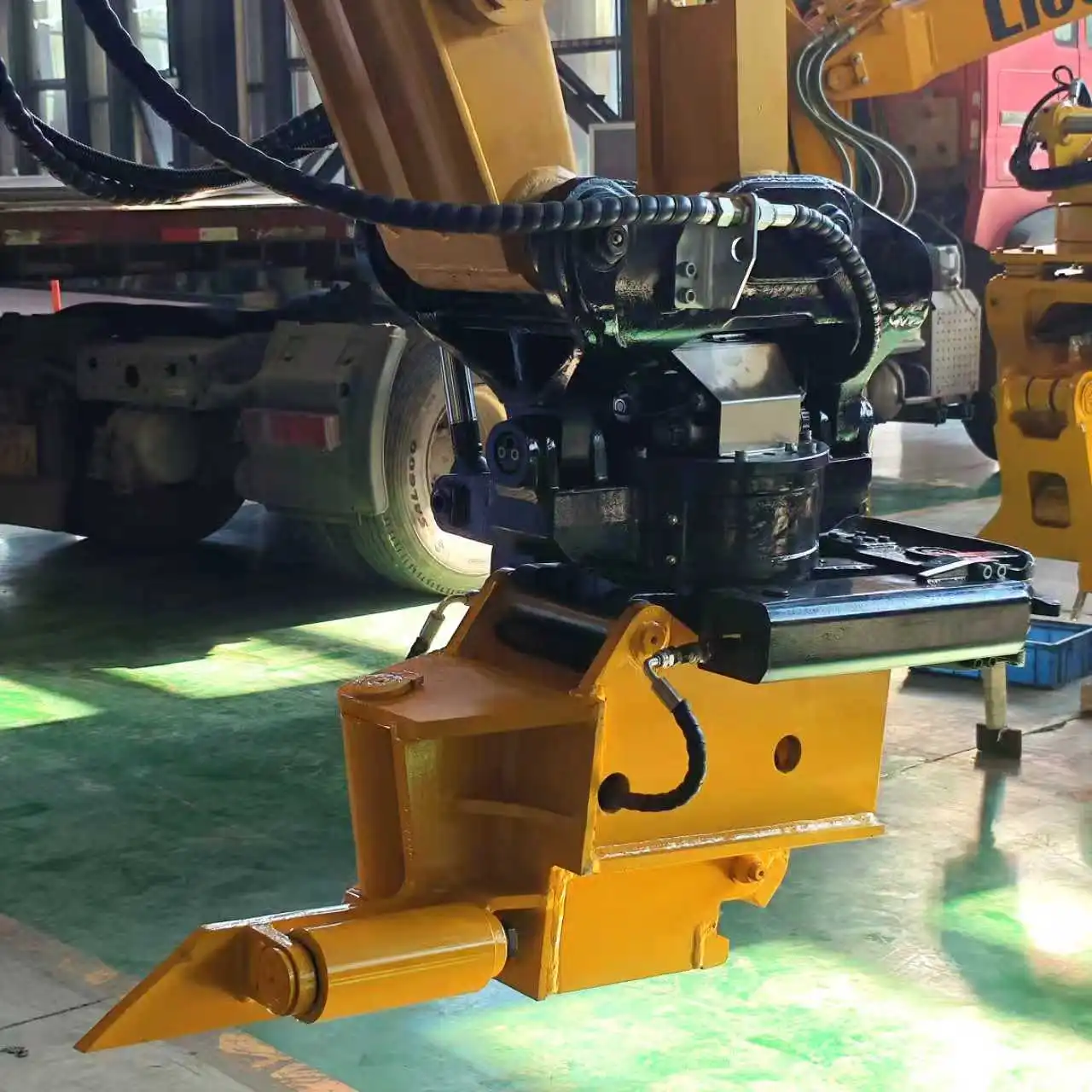

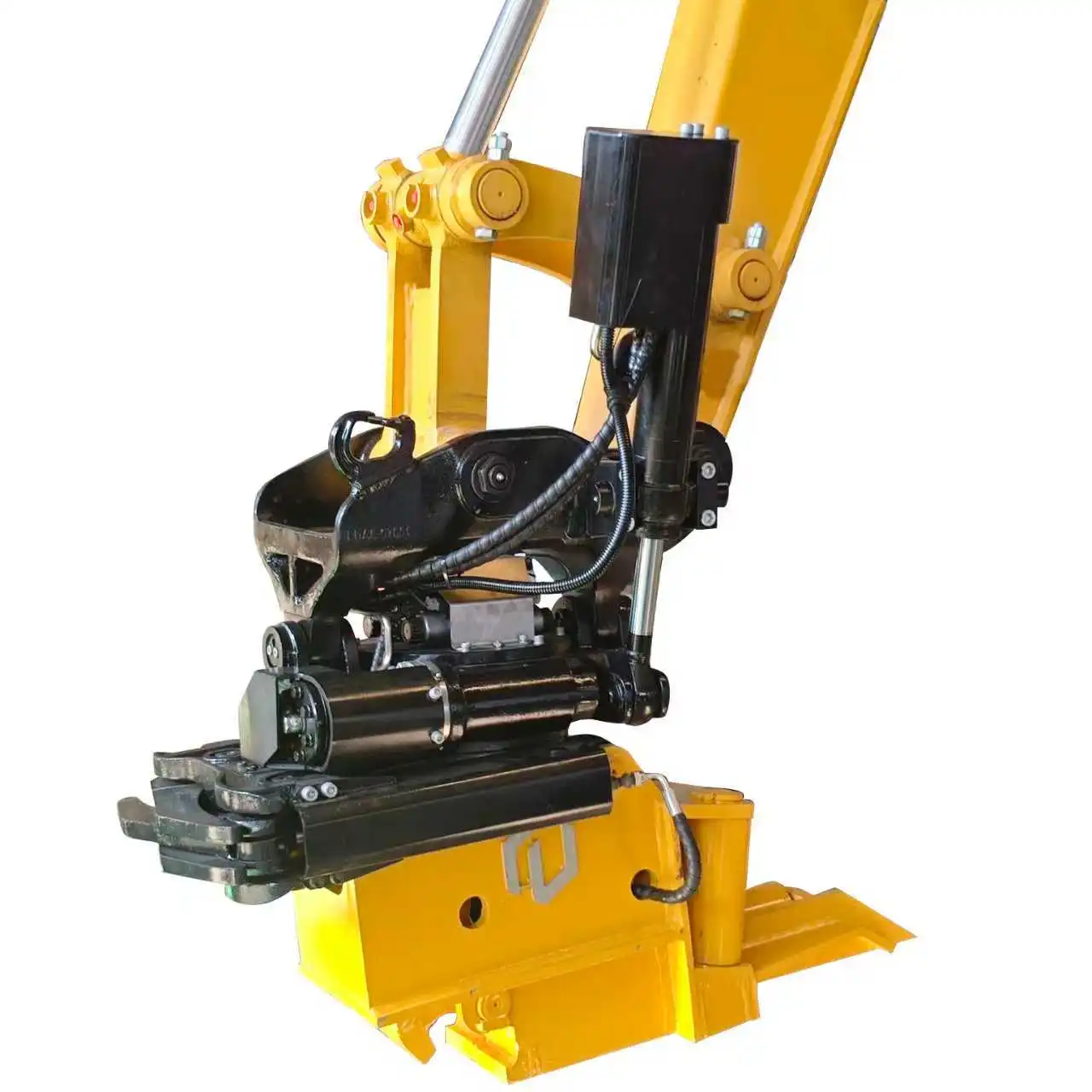

Hydraulic Tiltrotator System
Allows full rotation and tilt control, providing unmatched flexibility in rail positioning and alignment.
Vertical & Horizontal Rollers
Low-resistance rollers ensure smooth, effortless movement of rails along the guide, minimizing friction and wear.
Gripping Clamp Mechanism
Integrated hydraulic clamps provide secure grip and precise adjustment of track position during installation or removal.
Heavy-Duty Construction
Built from high-strength alloy steel to withstand the demanding conditions of rail maintenance and long-term operation.
Easy Integration
Compatible with various excavators and railway maintenance machines for fast connection and operation.
Application
Railway track installation and replacement
Rail maintenance and logistics operations
FAQ
Q1: How often does the product need maintenance?
A1: Regular maintenance is recommended every 500 hours of operation, including checks on hydraulic systems, lubrication, and inspection of wear parts. Tiannuo provides comprehensive maintenance guides and support.
Q2: Can the product be customized?
A2: Yes, we offer customization to meet the specific requirements of your railway maintenance projects. Contact us to discuss your needs.
Q3: What is the delivery time for the product?
A3: Our standard delivery time is 2-4 weeks, depending on the level of customization required.
Contact Us
Ready to optimize your railway maintenance operations with a high-performance Rail Transfer Guide（Rail Threader）? Reach out to us at arm@stnd-machinery.com to discuss your needs and receive a personalized quote.
